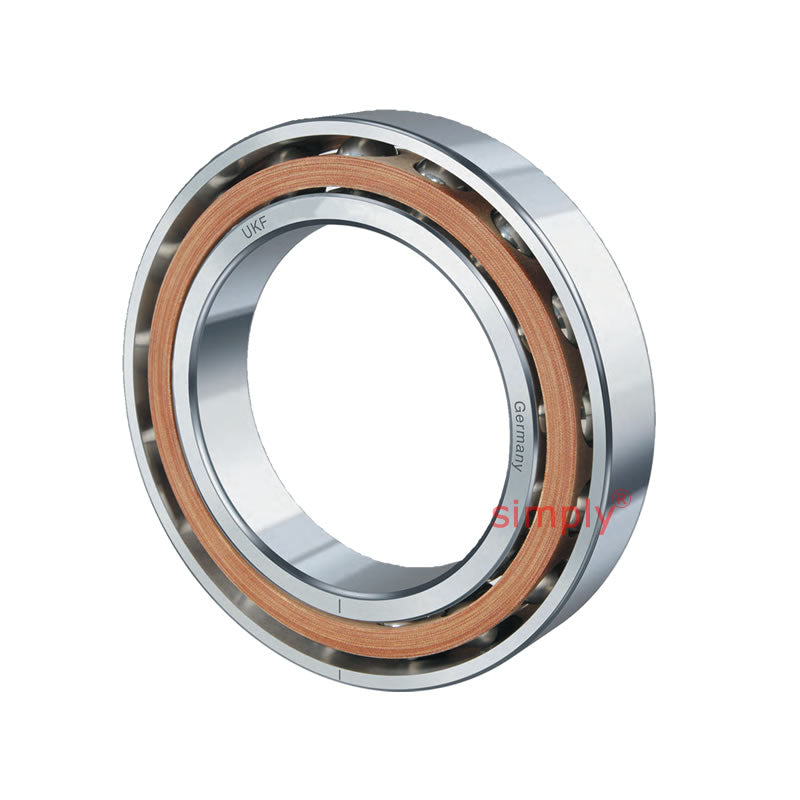

• UKF 719USS35A25I1L Super Precision Angular Contact Spindle Bearing 35x55x10mm
1 1

SKU: 719USS35 .A25.I/1.L-UKF

UKF 719USS35A25I1L Super Precision Angular Contact Spindle Bearing 35x55x10mm

UKF 719USS35A25I1L Super Precision Angular Contact Spindle Bearing 35x55x10mm
$131.34 ex VAT
$131.34 ex VAT
Sale Sold out

Equivalent to: 719USS35 .A25.I/1.L

In stock

Price Break
3+ $62.28
5+ $58.78
10+ $58.08
25+ $57.38
49+ $56.68
74+ $55.98
99+ $52.48
199+ $51.78
249+ $51.08
499+ $50.39
999+ $48.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UJZTL76NYY
Brand / Quality:
UKF - High Quality
Inside Diameter:
35mm
Outside Diameter:
55mm
Width:
10mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
d 35mm
D 55mm
B 10mm
Dynamic load Co 9400 N
Static load C 12800 N
Speed in Grease 21000 rpm
Speed in Oil 32000 rpm
r<sub>a</sub> 0.3mm
d<sub>a</sub> 39.5mm
D<sub>a</sub> 50.5mm
Axial Preload F<sub>v</sub> L 90 N
Axial Preload F<sub>v</sub> M 260 N
Axial Preload F<sub>v</sub> S 520 N
Axial Rigidity R<sub>a</sub> L 61 N/&mu;m
Axial Rigidity R<sub>a</sub> M 87 N/&mu;m
Axial Rigidity R<sub>a</sub> S 110 N/&mu;m
Radial Rigidity R<sub>r</sub> L 245 N/&mu;m
Radial Rigidity R <sub>r</sub> M 350 N/&mu;m
Radial Rigidity <sub>r</sub> S 445 N/&mu;m
Weight 0.08 kg
