SKU: 70USSC35-UKF

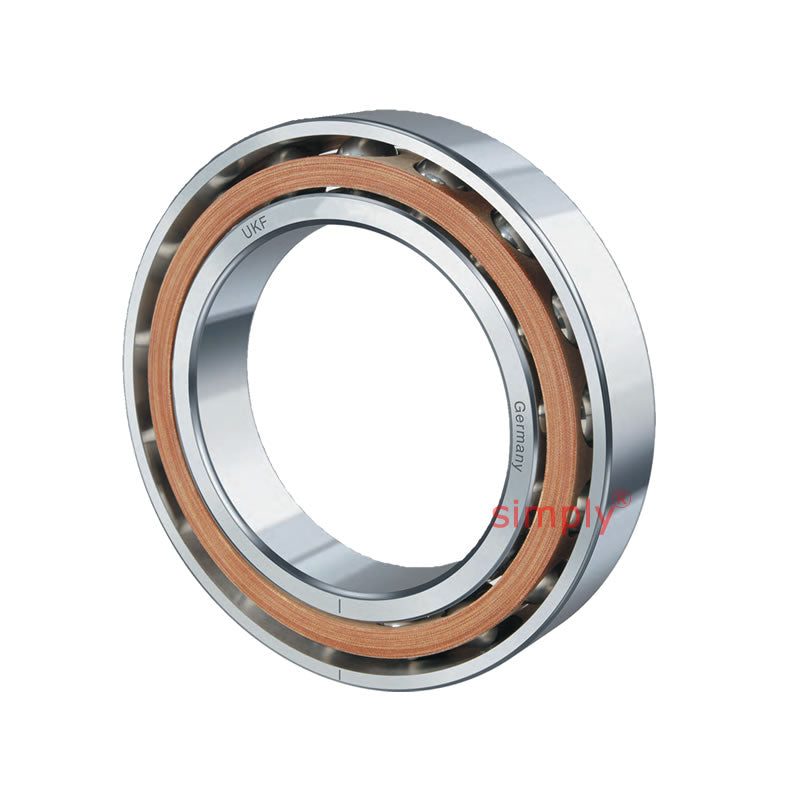

UKF 70USSC35 Super Precision Single Row Angular Contact Spindle Bearing 35x62x14mm
UKF 70USSC35 Super Precision Single Row Angular Contact Spindle Bearing 35x62x14mm
Equivalent to: 70USSC35
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 14mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| B | 14mm |
| Dynamic load Co | 7370 N |
| Static load C | 12880 N |
| Speed in Grease | 27300 rpm |
| Speed in Oil | 41300 rpm |
| r<sub>a</sub> | 1mm |
| d<sub>a</sub> | 41.5mm |
| D<sub>a</sub> | 55.5mm |
| Axial Preload F<sub>v</sub> L | 120 N |
| Axial Preload F<sub>v</sub> M | 350 N |
| Axial Preload F<sub>v</sub> S | 700 N |
| Axial Rigidity R<sub>a</sub> L | 78 N/μm |
| Axial Rigidity R<sub>a</sub> M | 105 N/μm |
| Axial Rigidity R<sub>a</sub> S | 138 N/μm |
| Radial Rigidity R<sub>r</sub> L | 316 N/μm |
| Radial Rigidity R <sub>r</sub> M | 449 N/μm |
| Radial Rigidity <sub>r</sub> S | 569 N/μm |
| Weight | 0.13 kg |
