SKU: 70USOC110-UKF

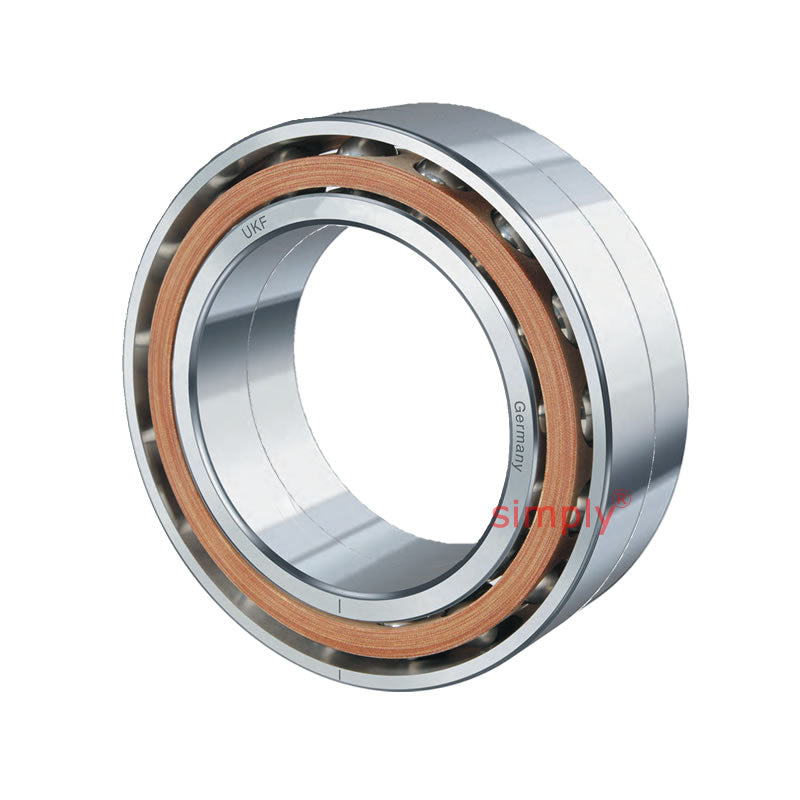

UKF 70USOC110 Super Precision Double Row Angular Contact Spindle Bearing 110x170x56mm
UKF 70USOC110 Super Precision Double Row Angular Contact Spindle Bearing 110x170x56mm
Equivalent to: 70USOC110
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 56mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
Technical
Technical
| d | 110mm |
|---|---|
| D | 170mm |
| B | 56mm |
| Dynamic load Co | 110000 N |
| Static load C | 120190 N |
| Speed in Grease | 8400 rpm |
| Speed in Oil | 13300 rpm |
| r<sub>a</sub> | 1.2mm |
| d<sub>a</sub> | 122mm |
| D<sub>a</sub> | 158mm |
| Axial Preload F<sub>v</sub> L | 720 N |
| Axial Preload F<sub>v</sub> M | 2140 N |
| Axial Preload F<sub>v</sub> S | 4300 N |
| Axial Rigidity R<sub>a</sub> L | 236 N/μm |
| Axial Rigidity R<sub>a</sub> M | 339 N/μm |
| Axial Rigidity R<sub>a</sub> S | 362 N/μm |
| Radial Rigidity R<sub>r</sub> L | 955 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1369 N/μm |
| Radial Rigidity <sub>r</sub> S | 1725 N/μm |
| Weight | 3.4 kg |
