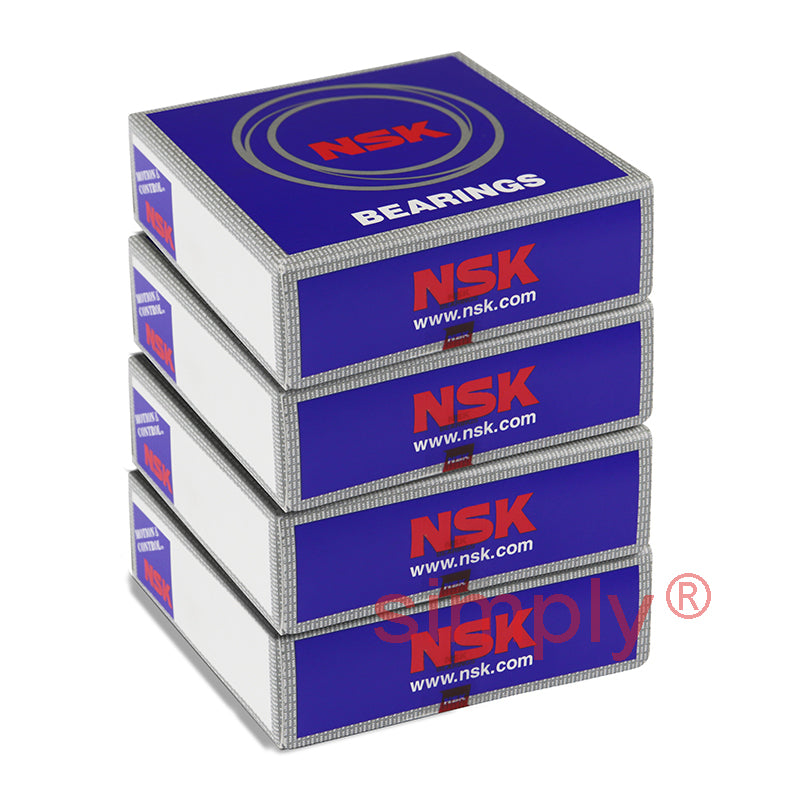

• NSK 7021A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 105x160x26mm (Set of 4)
1 1

SKU: 7021A5TRQUMP3-NSK

NSK 7021A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 105x160x26mm (Set of 4)

NSK 7021A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 105x160x26mm (Set of 4)
$3,933.45 ex VAT
$3,933.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,828.67
5+ $1,725.93
10+ $1,705.39
25+ $1,684.84
49+ $1,664.29
74+ $1,643.75
99+ $1,541.01
199+ $1,520.46
249+ $1,499.92
499+ $1,479.37
999+ $1,438.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
105mm
Outside Diameter:
160mm
Width:
26mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 105mm
D 160mm
B 26mm
r<sub>min</sub> 2mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 87.5Kn
C<sub>or</sub> 85kN
Axial load Kn 66.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 43.9mm
Max speed in grease 7600 rpm
Max speed in oil 11400 rpm
--- Fitting dimensions
d<sub>a min</sub> 115mm
D<sub>a max</sub> 150mm
D<sub>b max</sub> 154mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 7.28kg
