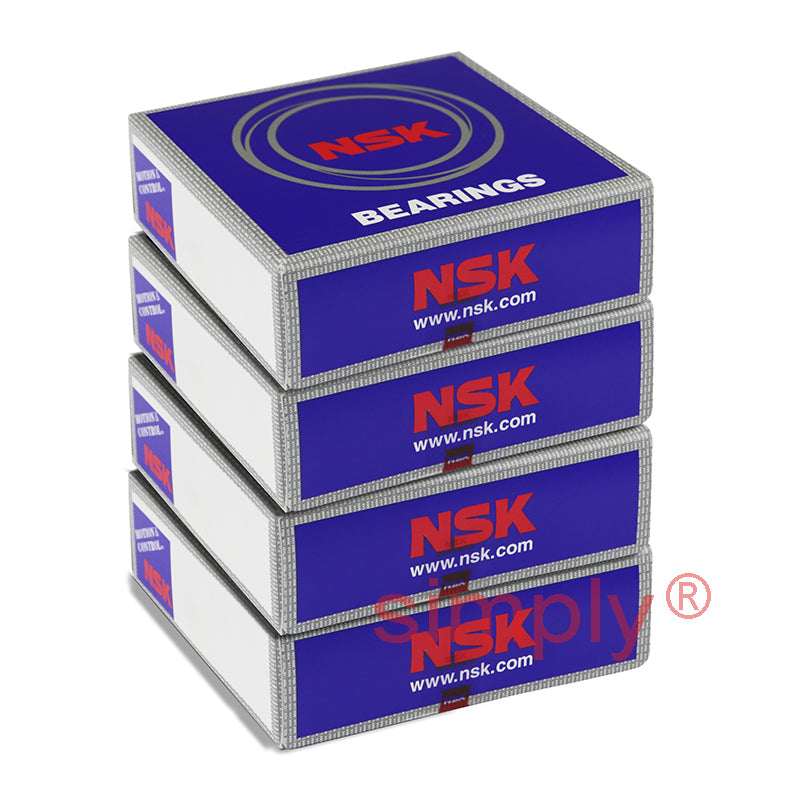

• NSK 7020CTRQUMP3 Super Precision Angular Contact Spindle Bearing 100x150x24mm (Set of 4)
1 1

SKU: 7020CTRQUMP3-NSK

NSK 7020CTRQUMP3 Super Precision Angular Contact Spindle Bearing 100x150x24mm (Set of 4)

NSK 7020CTRQUMP3 Super Precision Angular Contact Spindle Bearing 100x150x24mm (Set of 4)
$3,420.27 ex VAT
$3,420.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,590.09
5+ $1,500.76
10+ $1,482.89
25+ $1,465.03
49+ $1,447.16
74+ $1,429.29
99+ $1,339.96
199+ $1,322.10
249+ $1,304.23
499+ $1,286.36
999+ $1,250.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
100mm
Outside Diameter:
150mm
Width:
24mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 100mm
D 150mm
B 24mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 79Kn
C<sub>or</sub> 77kN
Axial load Kn 49 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16
Effective diameter 28.7mm
Max speed in grease 9200 rpm
Max speed in oil 14000 rpm
--- Fitting dimensions
d<sub>a min</sub> 109mm
D<sub>a max</sub> 141mm
D<sub>b max</sub> 144mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 5.08kg
