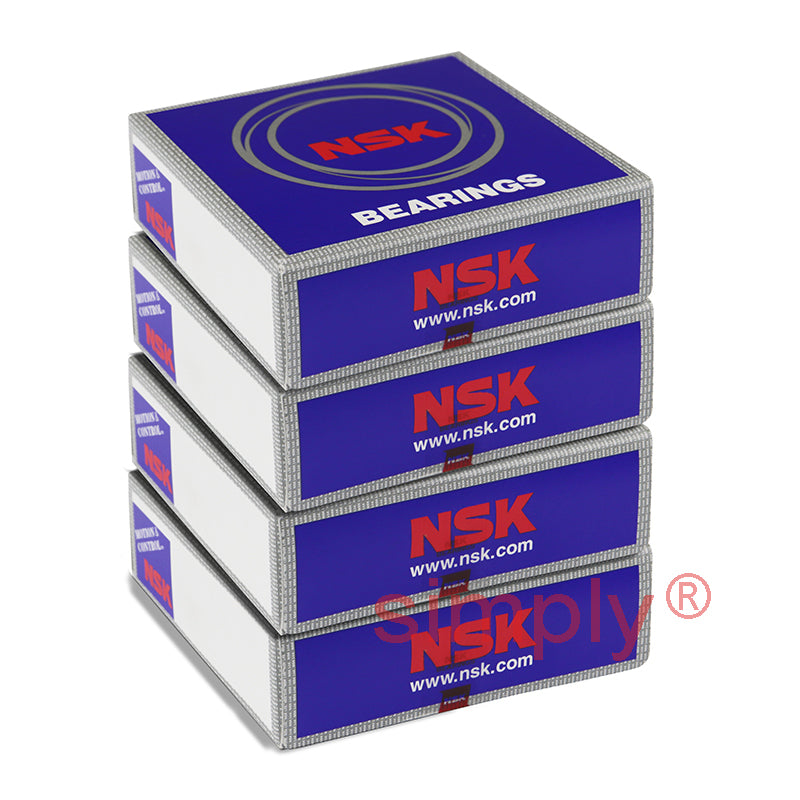

• NSK 7015A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 75x115x20mm (Set of 4)
1 1

SKU: 7015A5TRQUMP3-NSK

NSK 7015A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 75x115x20mm (Set of 4)

NSK 7015A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 75x115x20mm (Set of 4)
$2,178.15 ex VAT
$2,178.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,012.62
5+ $955.74
10+ $944.36
25+ $932.98
49+ $921.60
74+ $910.22
99+ $853.34
199+ $841.96
249+ $830.58
499+ $819.20
999+ $796.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
75mm
Outside Diameter:
115mm
Width:
20mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 75mm
D 115mm
B 20mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 47.5Kn
C<sub>or</sub> 43.5kN
Axial load Kn 33.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 32.1mm
Max speed in grease 10600 rpm
Max speed in oil 15800 rpm
--- Fitting dimensions
d<sub>a min</sub> 82mm
D<sub>a max</sub> 108mm
D<sub>b max</sub> 110mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 2.608kg
