SKU: 7012A5TRDBDLP3-RHP

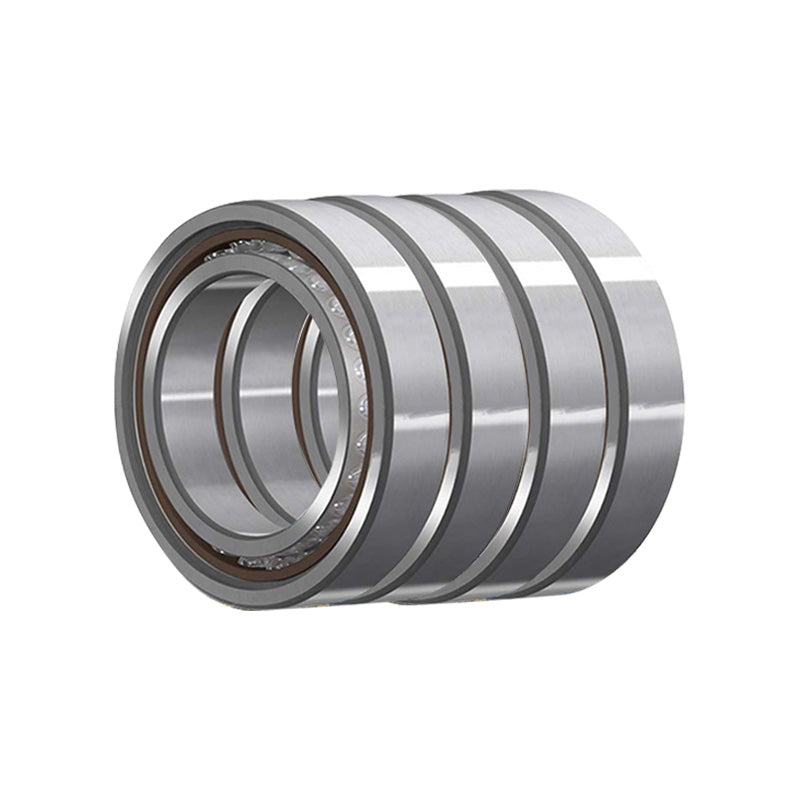

RHP 7012A5TRDBDLP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)

RHP 7012A5TRDBDLP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)
Regular price $1,167.87 ex VAT
Regular price Sale price $1,167.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $553.80
5+ $522.69
10+ $516.47
25+ $510.25
49+ $504.02
74+ $497.80
99+ $466.69
199+ $460.47
249+ $454.24
499+ $448.02
999+ $435.58
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 35Kn
C<sub>or</sub> 29.1kN
Axial load Kn 23 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 27.1mm
Max speed in grease 13000 rpm
Max speed in oil 19400 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.632kg
