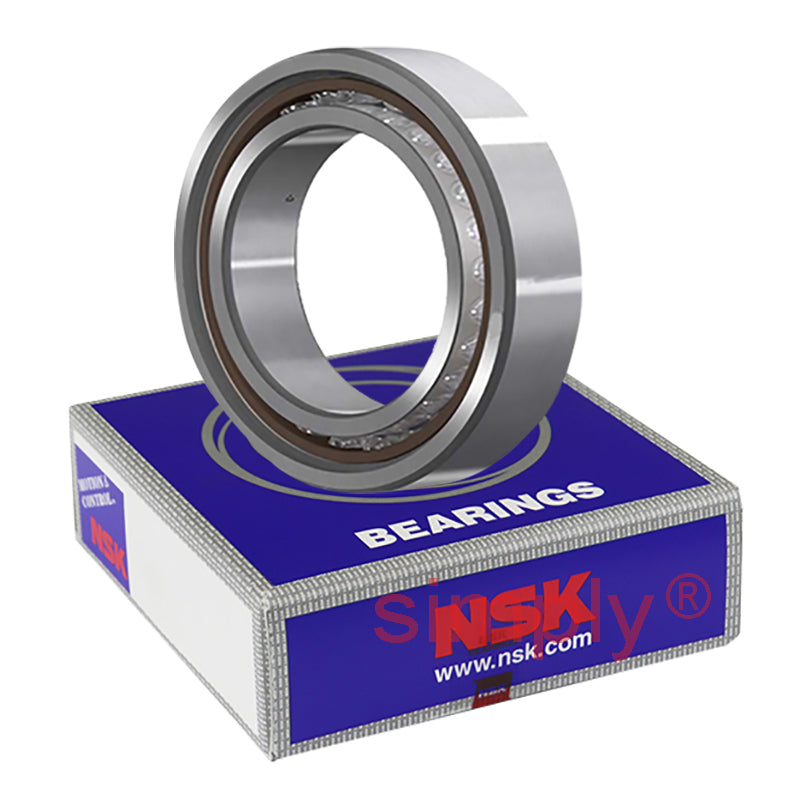

• NSK 7007CTRSULP4 Super Precision Angular Contact Spindle Bearing 35x62x14mm
1 1

SKU: 7007CTRSULP4-NSK

NSK 7007CTRSULP4 Super Precision Angular Contact Spindle Bearing 35x62x14mm

NSK 7007CTRSULP4 Super Precision Angular Contact Spindle Bearing 35x62x14mm
$229.14 ex VAT
$229.14 ex VAT
Sale Sold out

In stock

Price Break
3+ $106.53
5+ $100.55
10+ $99.35
25+ $98.15
49+ $96.96
74+ $95.76
99+ $89.78
199+ $88.58
249+ $87.38
499+ $86.18
999+ $83.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.1Kn
C<sub>or</sub> 13.7kN
Axial load Kn 9.35 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15
Effective diameter 13.5mm
Max speed in grease 23800 rpm
Max speed in oil 36100 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.151kg
