SKU: 7002CTRSULP4-RHP

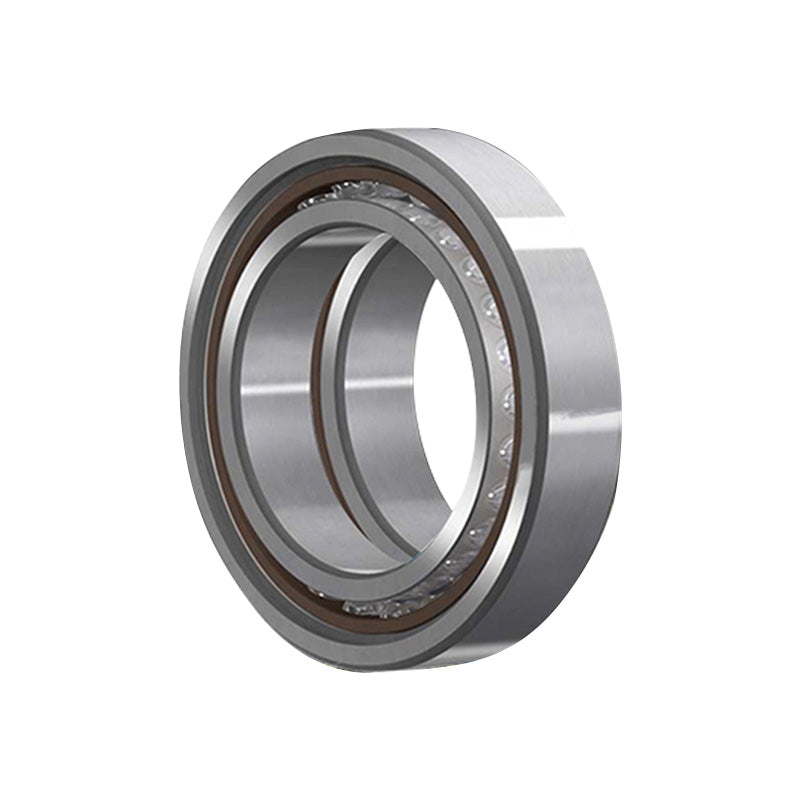

RHP 7002CTRSULP4 Super Precision Angular Contact Spindle Bearing 15x32x9mm

RHP 7002CTRSULP4 Super Precision Angular Contact Spindle Bearing 15x32x9mm
Regular price $180.91 ex VAT
Regular price Sale price $180.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $85.79
5+ $80.97
10+ $80.00
25+ $79.04
49+ $78.08
74+ $77.11
99+ $72.29
199+ $71.33
249+ $70.36
499+ $69.40
999+ $67.47
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 15mm
D 32mm
B 9mm
r<sub>min</sub> 0.3mm
r1<sub>min</sub> 0.15mm
--- Loads angles and speeds
C<sub>r</sub> 6.55Kn
C<sub>or</sub> 3.4kN
Axial load Kn 2.63 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14.1
Effective diameter 7.6mm
Max speed in grease 49000 rpm
Max speed in oil 74500 rpm
--- Fitting dimensions
d<sub>a min</sub> 17.5mm
D<sub>a max</sub> 29.5mm
D<sub>b max</sub> 30.8mm
r<sub>a max</sub> 0.3mm
r<sub>b max</sub> 0.15mm
Weight 0.03kg
