SKU: 6926/C3-NACHI

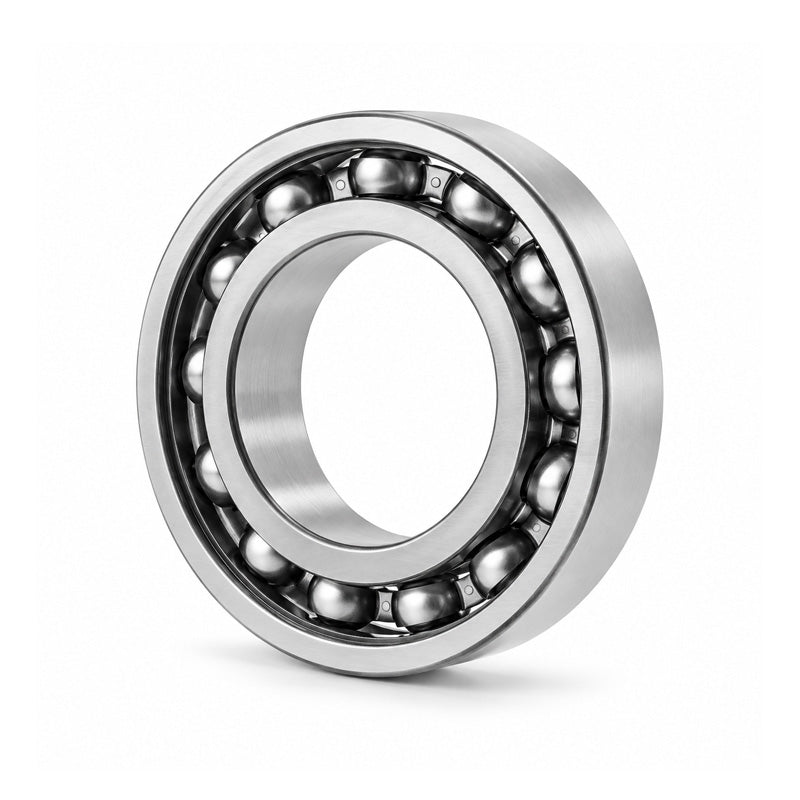

NACHI 6926C3 Thin Section Open Deep Groove Ball Bearing 130x180x24mm
NACHI 6926C3 Thin Section Open Deep Groove Ball Bearing 130x180x24mm
Equivalent to: 61926C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 180mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 130mm |
|---|---|
| Outside Diameter D | 180mm |
| Width B | 24mm |
| Min radius r | 1.5mm |
| Dynamic load | 65000 kN |
| Static load | 67000 kN |
| Max speed in oil | 4200 rpm |
| Max speed in grease | 3500 rpm |
| da min | 137mm |
| Da max | 173mm |
| ra max | 1.5mm |
| Weight | 1.78 kg |
