SKU: 6921LLU/5K-NTN

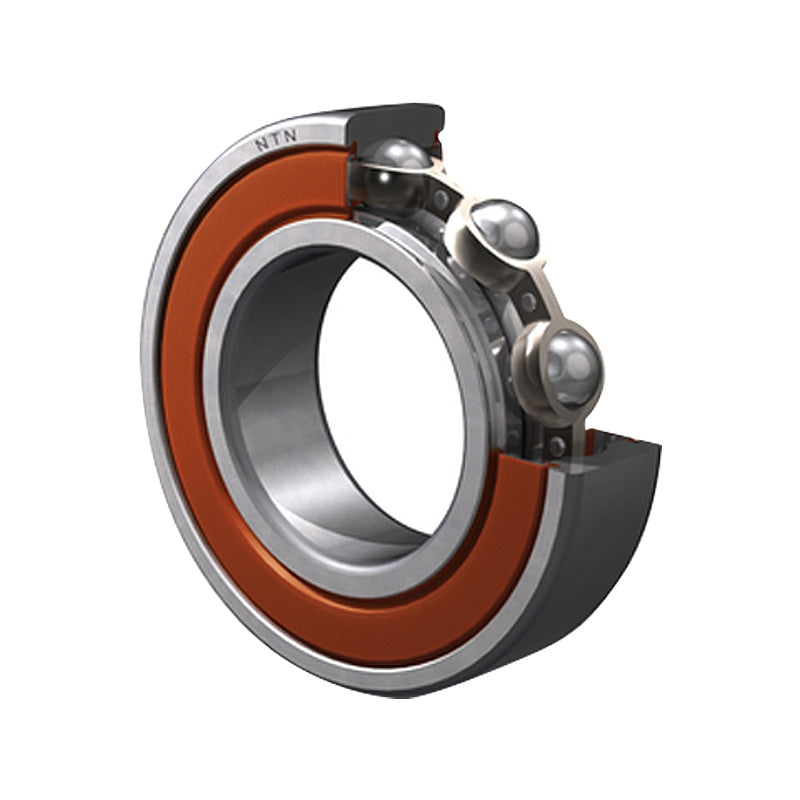

NTN 6921LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 105x145x20mm
Equivalent to: 6921LLUCM 61921LLUCM 6921LLU 61921LLU 6921NSE 6921DU 6921RS 6921RSH 6921P 6921RSR 6921LU 69212NSE 6921DDU 69212RS 6921-2RS 69212RS1 69212RSH 6921PP 69212RSR 6921LLU 6921RS2 69212RS2 69212RSL 6921LFS 6921EE 1921SZZ 6921DD AY1052RS 9321NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 145mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 105mm |
| D | 145mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 47 kN |
| C<sub>or</sub> | 42 kN |
| C<sub>u</sub> | 2.52 kN |
| f<sub>0</sub> | 16.5 kN |
| Speed | 2500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 111.5mm |
| d<sub>a</sub> Max. | 115mm |
| D<sub>a</sub> Max. | 138.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.816 kg |
