SKU: 6918LLU/2AS-NTN

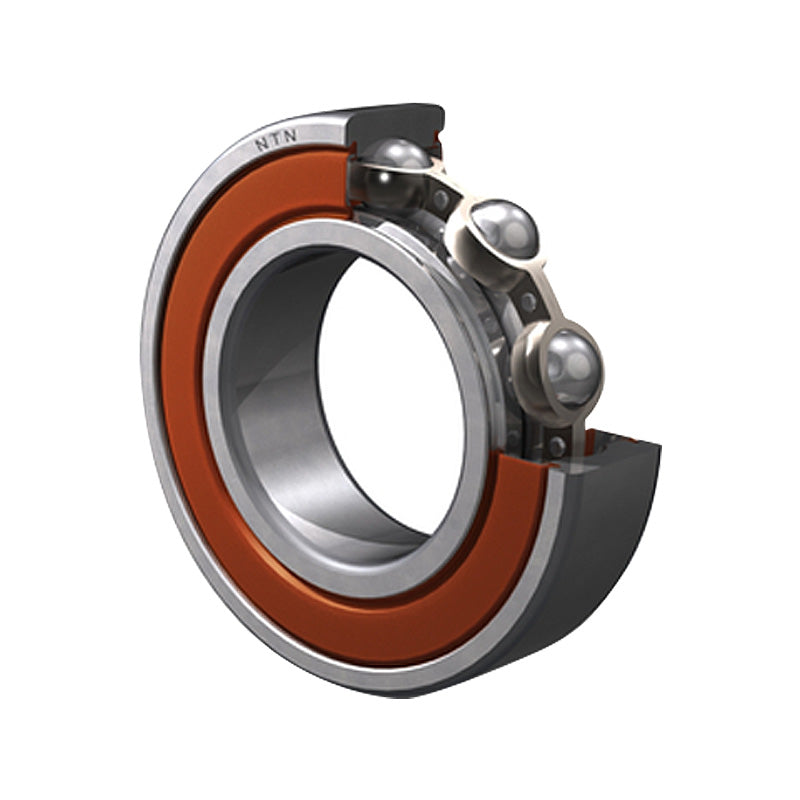

NTN 6918LLU/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 90x125x18mm
Equivalent to: 6918LLUCM 61918LLUCM 6918LLU 61918LLU 6918NSE 6918DU 6918RS 6918RSH 6918P 6918RSR 6918LU 69182NSE 6918DDU 69182RS 6918-2RS 69182RS1 69182RSH 6918PP 69182RSR 6918LLU 6918RS2 69182RS2 69182RSL 6918LFS 6918EE 1918SZZ 6918DD AY902RS 9318NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 125mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 90mm |
| D | 125mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 36.5 kN |
| C<sub>or</sub> | 31.5 kN |
| C<sub>u</sub> | 2.05 kN |
| f<sub>0</sub> | 16.5 kN |
| Speed | 2900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 96.5mm |
| d<sub>a</sub> Max. | 99mm |
| D<sub>a</sub> Max. | 118.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.554 kg |
