SKU: 6912-ZZ/C3-NACHI

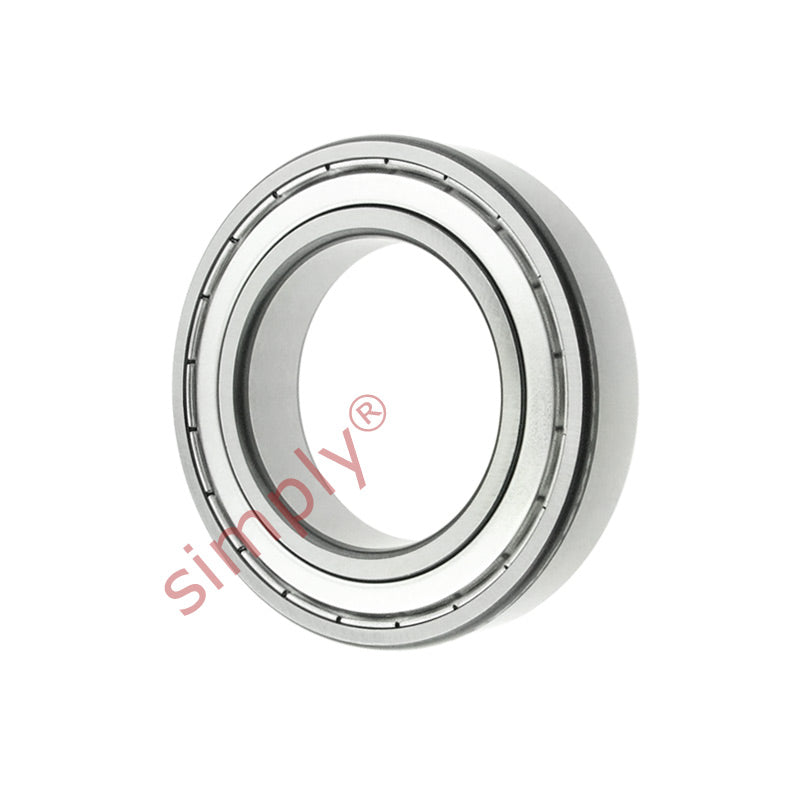

NACHI 6912ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 60x85x13mm
NACHI 6912ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 60x85x13mm
Equivalent to: 6912ZZEC3 69122ZC3 6912.2ZC3 6912KDDC3 6912DDC3 69122ZRC3 6912FFC3 61912ZZEC3 61912ZZC3 619122ZC3 61912.2ZC3 61912KDDC3 61912DDC3 619122ZRC3 61912FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 60mm |
|---|---|
| Outside Diameter D | 85mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 15200 kN |
| Static load | 13500 kN |
| Max speed | 7600 rpm |
| da min | 65mm |
| Da max | 80mm |
| ra max | 1mm |
| Weight | 0.191 kg |
