SKU: 6908LLU/5K-NTN

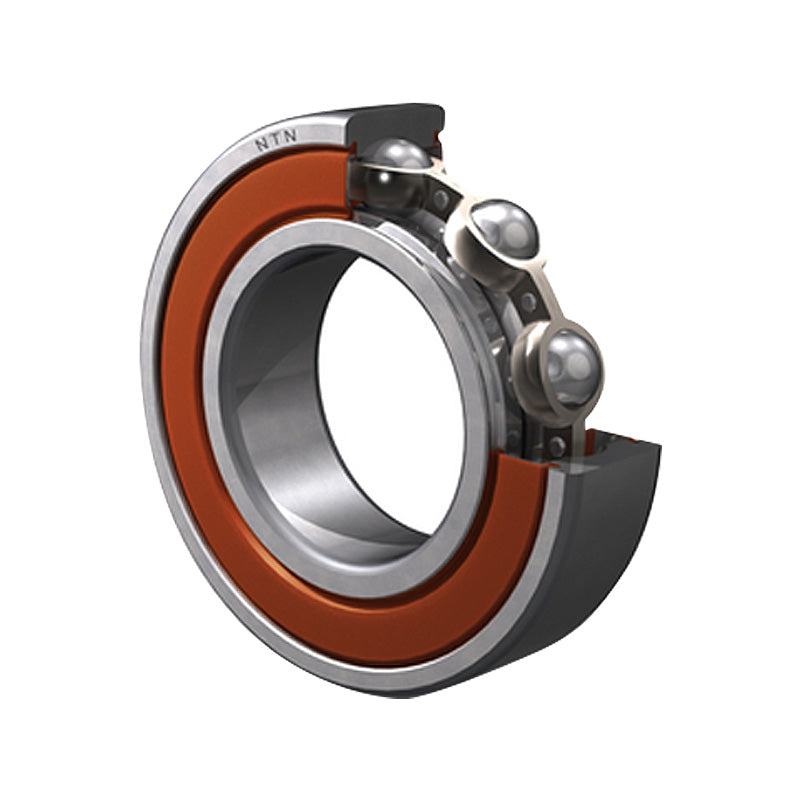

NTN 6908LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 40x62x12mm
Equivalent to: 6908LLUCM 61908LLUCM 6908LLU 61908LLU 6908NSE 6908DU 6908RS 6908RSH 6908P 6908RSR 6908LU 69082NSE 6908DDU 69082RS 6908-2RS 69082RS1 69082RSH 6908PP 69082RSR 6908LLU 6908RS2 69082RS2 69082RSL 6908LFS 6908EE 1908SZZ 6908DD AY402RS 9308NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 62mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 13.5 kN |
| C<sub>or</sub> | 8.9 kN |
| C<sub>u</sub> | 0.645 kN |
| f<sub>0</sub> | 15.8 kN |
| Speed | 6300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 44mm |
| d<sub>a</sub> Max. | 45mm |
| D<sub>a</sub> Max. | 58mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.11 kg |
