SKU: 6908-NTN

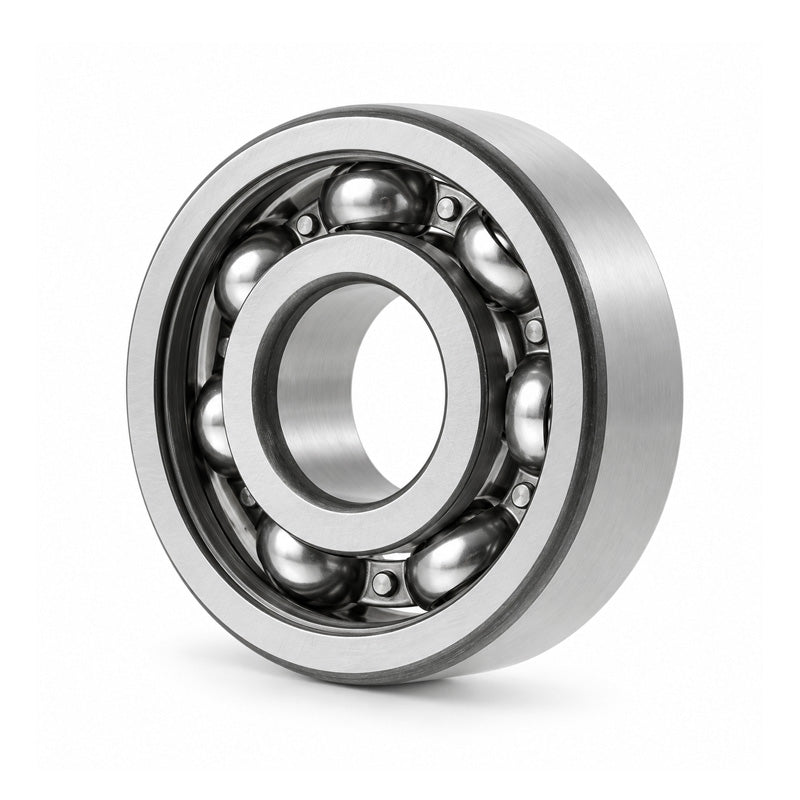

NTN 6908 Open Type Deep Groove Ball Bearing 40x62x12mm
NTN 6908 Open Type Deep Groove Ball Bearing 40x62x12mm
Regular price
$101.57
ex VAT
Regular price
Sale price
$101.57
ex VAT
Equivalent to: 6908CM 61908CM 9308K 61908 61908S AY40
In stock
Price Break
3+
$48.17
5+
$45.46
10+
$44.92
25+
$44.38
49+
$43.84
74+
$43.30
99+
$40.59
199+
$40.05
249+
$39.51
499+
$38.97
999+
$37.88
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 62mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 13.5 kN |
| C<sub>or</sub> | 8.9 kN |
| C<sub>u</sub> | 0.645 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 11000 rpm |
| Oil | 13000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 44mm |
| D<sub>a</sub> Max. | 58mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.11 kg |
