SKU: 6906-2NSE/C3-NACHI

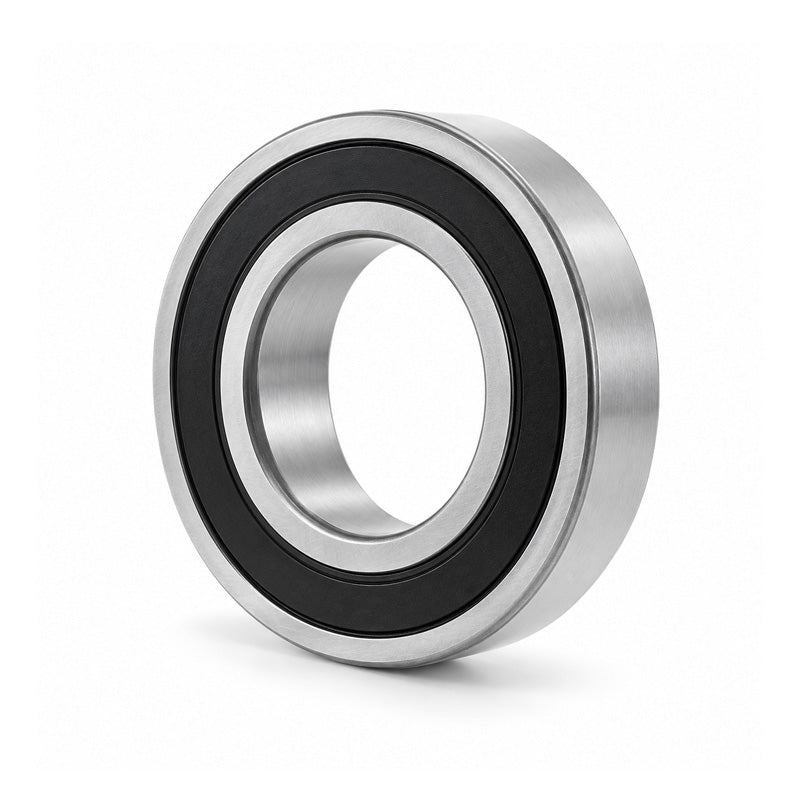

NACHI 69062NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 30x47x9mm
NACHI 69062NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 30x47x9mm
Equivalent to: 6906NSEC3 6906DUC3 6906RSC3 6906RSHC3 6906PC3 6906RSRC3 6906LUC3 61906NSEC3 61906DUC3 61906RSC3 61906RSHC3 61906PC3 61906RSRC3 61906LUC3 6906DDUC3 69062RSC3 69062RS1C3 69062RSHC3 6906PPC3 69062RSRC3 6906LLUC3 619062NSEC3 61906DDUC3 619062RSC3 619062RS1C3 619062RSHC3 61906PPC3 619062RSRC3 61906LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 9mm |
| Min radius r | 0.3mm |
| Dynamic load | 7250 kN |
| Static load | 5000 kN |
| Max speed | 14000 rpm |
| da min | 32mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Weight | 0.045 kg |
