SKU: 6903-2NSE/C3-NACHI

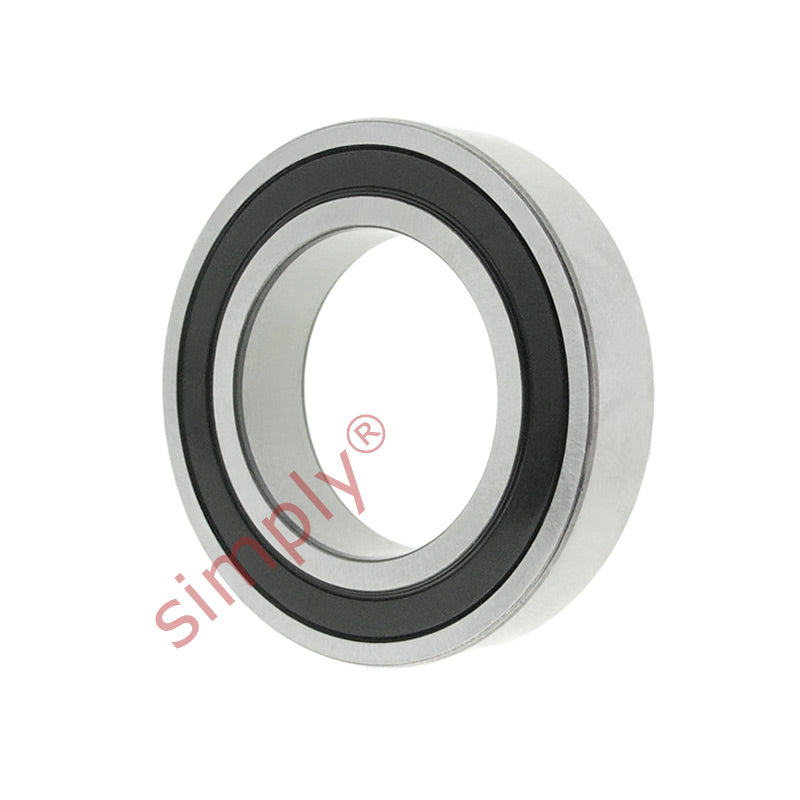

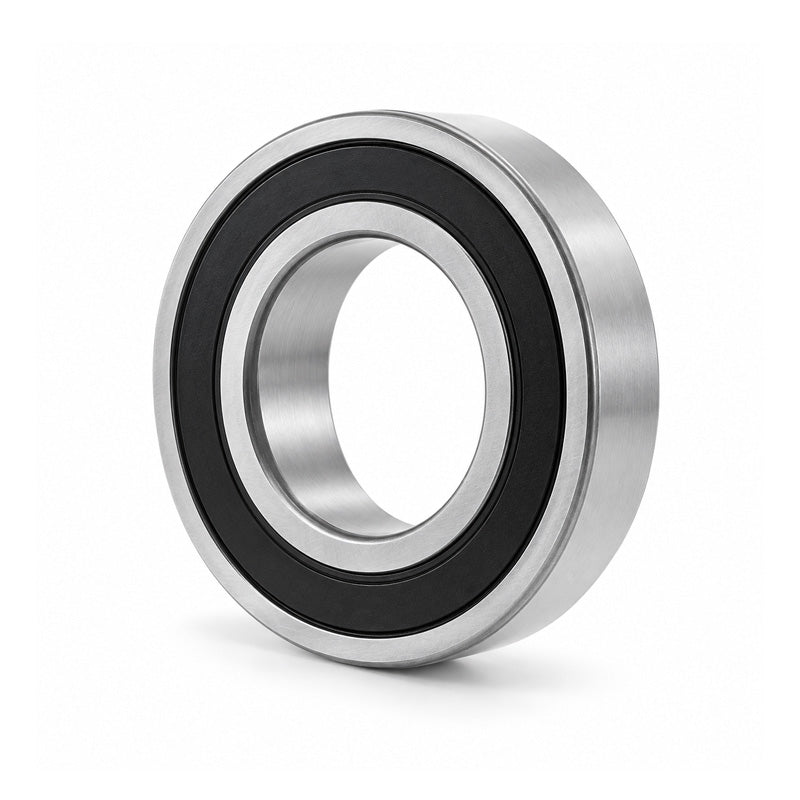

NACHI 69032NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 17x30x7mm
NACHI 69032NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 17x30x7mm
Equivalent to: 6903NSEC3 6903DUC3 6903RSC3 6903RSHC3 6903PC3 6903RSRC3 6903LUC3 61903NSEC3 61903DUC3 61903RSC3 61903RSHC3 61903PC3 61903RSRC3 61903LUC3 6903DDUC3 69032RSC3 69032RS1C3 69032RSHC3 6903PPC3 69032RSRC3 6903LLUC3 619032NSEC3 61903DDUC3 619032RSC3 619032RS1C3 619032RSHC3 61903PPC3 619032RSRC3 61903LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 30mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 4600 kN |
| Static load | 2550 kN |
| Max speed | 24000 rpm |
| da min | 19mm |
| Da max | 28mm |
| ra max | 0.3mm |
| Weight | 0.018 kg |
