SKU: 6901-ZZE/C3-NACHI

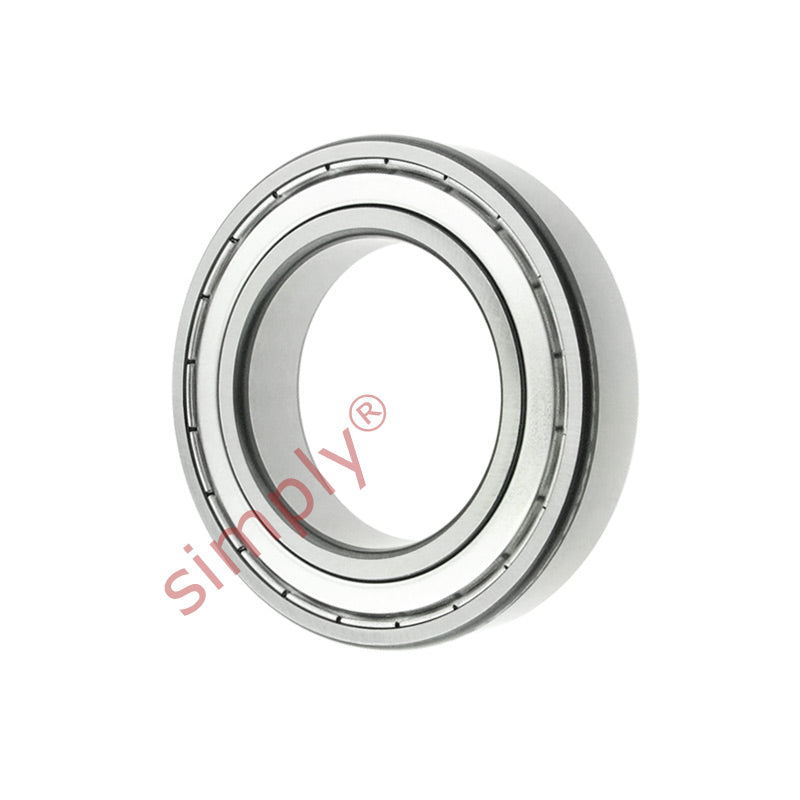

NACHI 6901ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 12x24x6mm
NACHI 6901ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 12x24x6mm
Equivalent to: 6901ZZC3 69012ZC3 6901.2ZC3 6901KDDC3 6901DDC3 69012ZRC3 6901FFC3 61901ZZEC3 61901ZZC3 619012ZC3 61901.2ZC3 61901KDDC3 61901DDC3 619012ZRC3 61901FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 12mm |
|---|---|
| Outside Diameter D | 24mm |
| Width B | 6mm |
| Min radius r | 0.3mm |
| Dynamic load | 2700 kN |
| Static load | 1320 kN |
| Max speed | 30000 rpm |
| da min | 14mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Weight | 0.011 kg |
