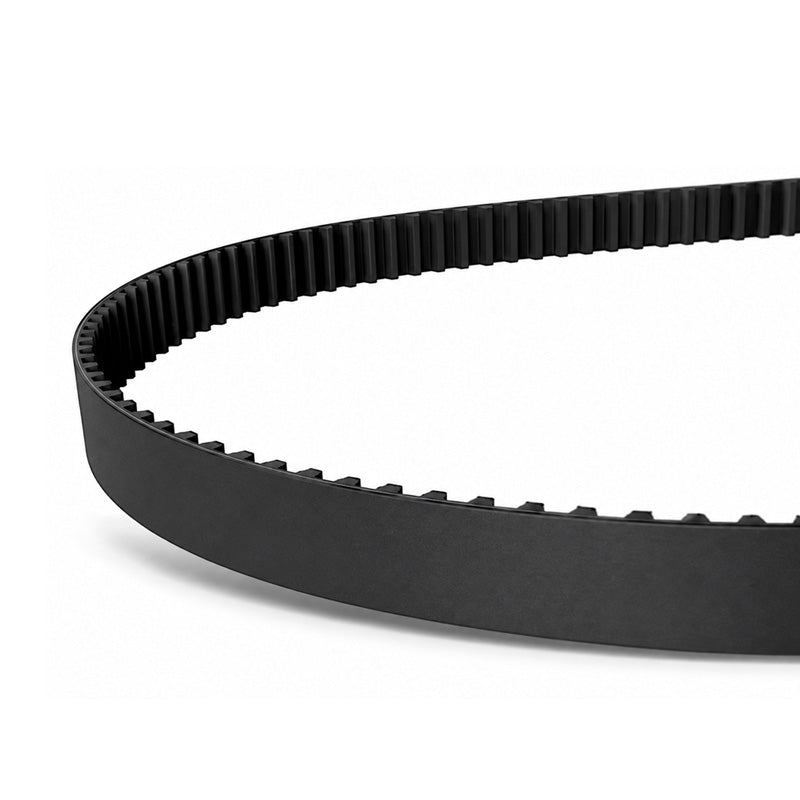

696MXL025 Transflex Synchronous Toothed Belt 0.25 inch Wide 6.96 inch Length 87 Teeth
696MXL025 Transflex Synchronous Toothed Belt 0.25 inch Wide 6.96 inch Length 87 Teeth
Regular price
$6.72
ex VAT
Regular price
Sale price
$6.72
ex VAT
In stock
Price Break
3+
$2.51
5+
$2.15
10+
$1.97
15+
$1.79
20+
$1.43
30+
$1.25
40+
$1.07
50+
$0.00
60+
$0.00
75+
$0.00
100+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Transflex - High Quality
- Belt Width Approx:
- 6.35mm = 1/4 inch
- Belt Depth Approx:
- 1.14mm
- Belt Length Approx:
- 176.78mm = 6.96 inch
- Number of Teeth:
- 87
Technical
Technical
| Belt width | 0.25 inch = 6.35mm |
|---|---|
| Pitch length | 6.96 inch = 176.78mm |
| Number of teeth | 87 |
| Tooth pitch t | 0.08 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.02 inch |
| Pitch zone u | 0.01 inch |
