SKU: 6852-NTN

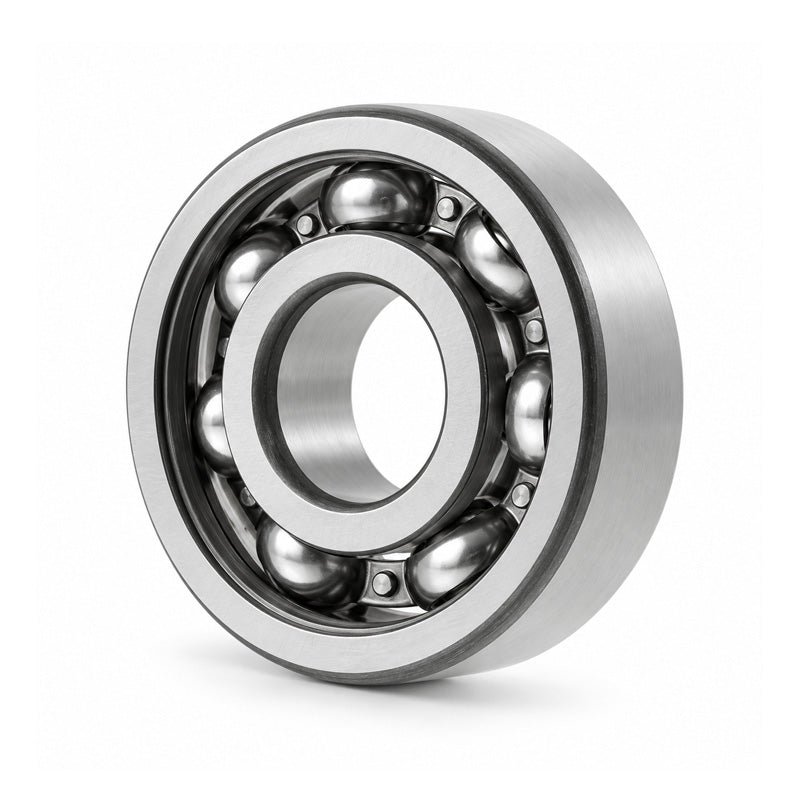

NTN 6852 Open Type Deep Groove Ball Bearing 260x320x28mm
NTN 6852 Open Type Deep Groove Ball Bearing 260x320x28mm
Regular price
$2,446.58
ex VAT
Regular price
Sale price
$2,446.58
ex VAT
Equivalent to: 6852CM 61852CM 61852T 61852 1852S 61852Y
In stock
Price Break
3+
$1,160.17
5+
$1,094.99
10+
$1,081.95
25+
$1,068.92
49+
$1,055.88
74+
$1,042.85
99+
$977.67
199+
$964.63
249+
$951.60
499+
$938.56
999+
$912.49
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 320mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 260mm |
| D | 320mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 96.5 kN |
| C<sub>or</sub> | 120 kN |
| C<sub>u</sub> | 4.65 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 1700 rpm |
| Oil | 2000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 269mm |
| D<sub>a</sub> Max. | 311mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 5 kg |
