SKU: 6848/C3-NACHI

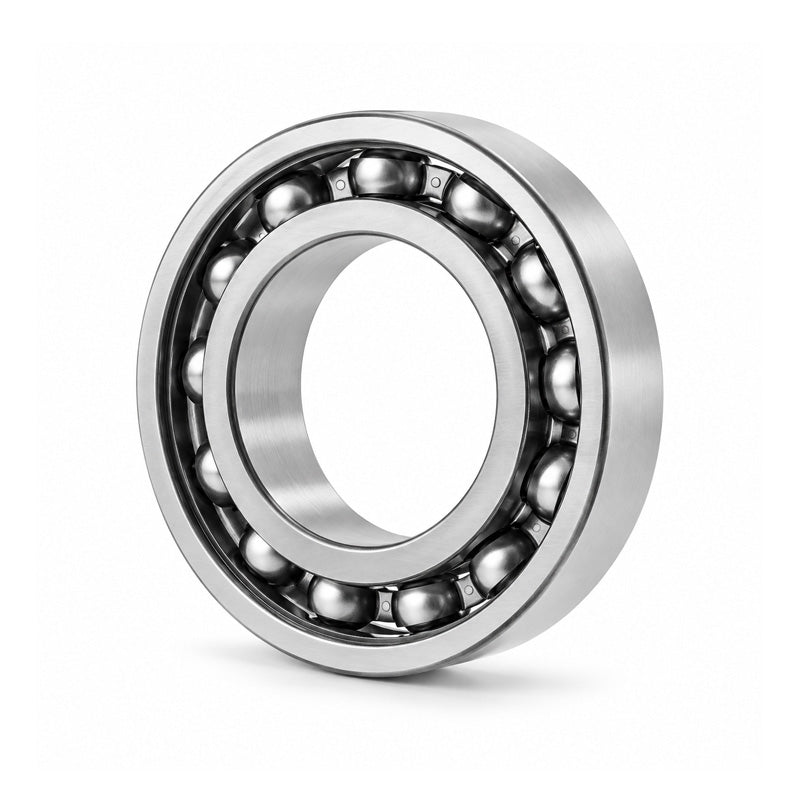

NACHI 6848C3 Thin Section Open Deep Groove Ball Bearing 240x300x28mm
NACHI 6848C3 Thin Section Open Deep Groove Ball Bearing 240x300x28mm
Equivalent to: 61848C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 240mm
- Outside Diameter:
- 300mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 240mm |
|---|---|
| Outside Diameter D | 300mm |
| Width B | 28mm |
| Min radius r | 2mm |
| Dynamic load | 98500 kN |
| Static load | 127000 kN |
| Max speed in oil | 2200 rpm |
| Max speed in grease | 1900 rpm |
| da min | 250mm |
| Da max | 291mm |
| ra max | 2mm |
| Weight | 4.6 kg |
