SKU: 6824LLU/2AS-NTN

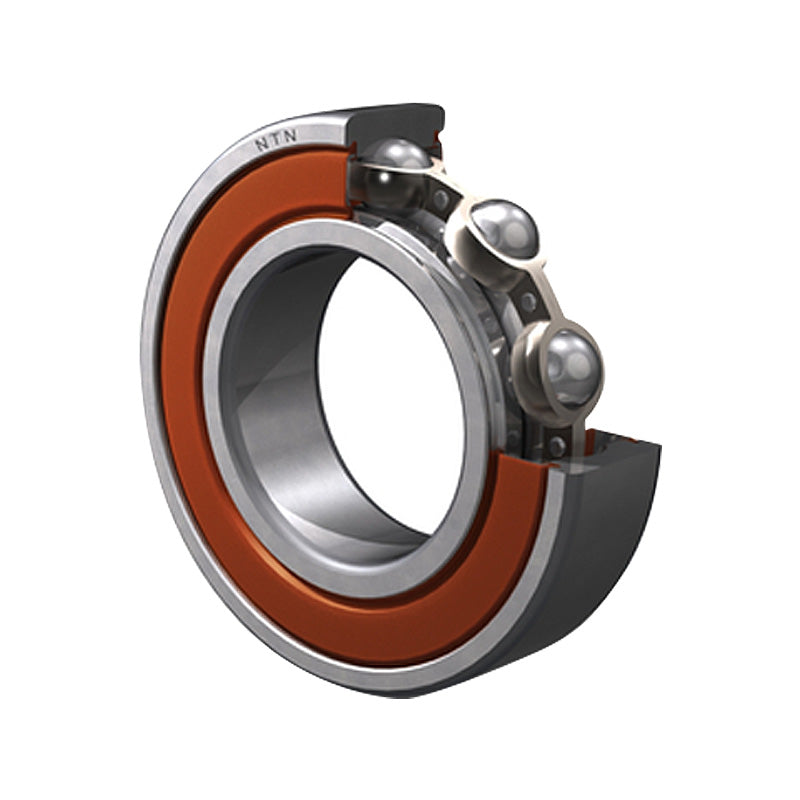

NTN 6824LLU/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 120x150x16mm
Equivalent to: 6824LLUCM 61824LLUCM 6824LLU 61824LLU 6824NSE 6824DU 6824RS 6824RSH 6824P 6824RSR 6824LU 68242NSE 6824DDU 68242RS 6824-2RS 68242RS1 68242RSH 6824PP 68242RSR 6824LLU 6824RS2 68242RS2 68242RSL 6824LFS 6824EE 1824SZZ 6824DD
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 150mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 120mm |
| D | 150mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 32 kN |
| C<sub>or</sub> | 33 kN |
| C<sub>u</sub> | 1.89 kN |
| f<sub>0</sub> | 16 kN |
| Speed | 2200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 125mm |
| d<sub>a</sub> Max. | 128mm |
| D<sub>a</sub> Max. | 145mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.555 kg |
