SKU: 6822LLU/5K-NTN

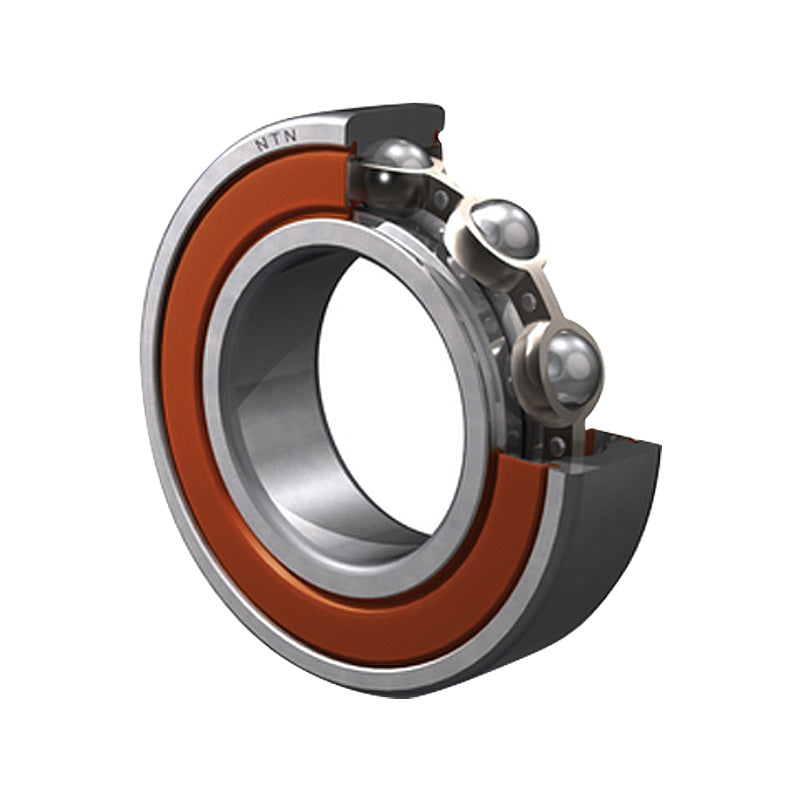

NTN 6822LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 110x140x16mm
Equivalent to: 6822LLUCM 61822LLUCM 6822LLU 61822LLU 6822NSE 6822DU 6822RS 6822RSH 6822P 6822RSR 6822LU 68222NSE 6822DDU 68222RS 6822-2RS 68222RS1 68222RSH 6822PP 68222RSR 6822LLU 6822RS2 68222RS2 68222RSL 6822LFS 6822EE 1822SZZ 6822DD
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 140mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 140mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 27.5 kN |
| C<sub>or</sub> | 28.2 kN |
| C<sub>u</sub> | 1.68 kN |
| f<sub>0</sub> | 16 kN |
| Speed | 2400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 115mm |
| d<sub>a</sub> Max. | 118mm |
| D<sub>a</sub> Max. | 135mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.515 kg |
