SKU: 6822C3-NTN

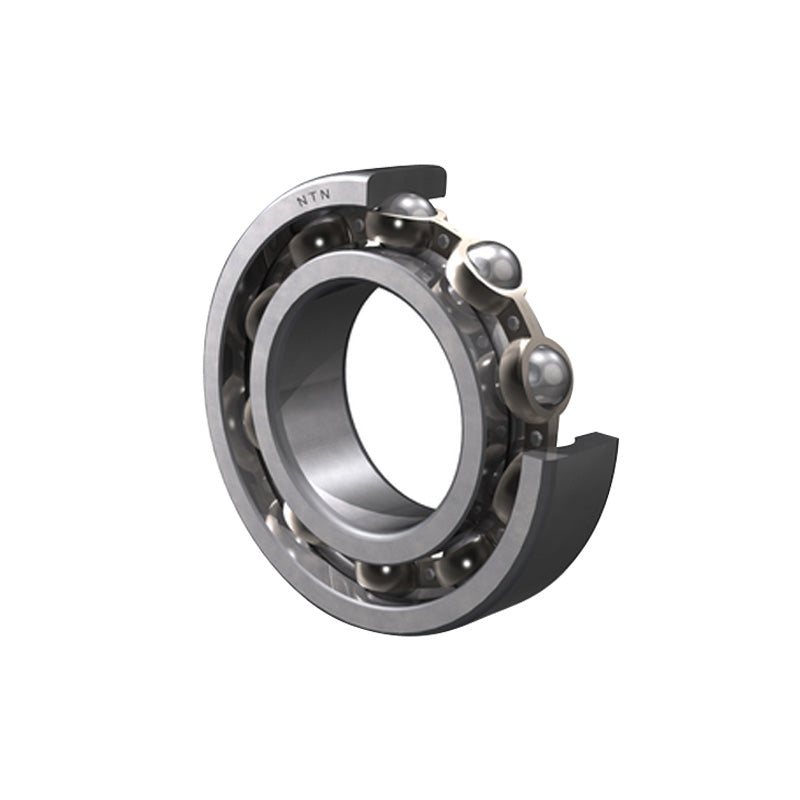

NTN 6822C3 Open Type Deep Groove Ball Bearing 110x140x16mm
NTN 6822C3 Open Type Deep Groove Ball Bearing 110x140x16mm
Regular price
$519.60
ex VAT
Regular price
Sale price
$519.60
ex VAT
Equivalent to: 61822C3 61822TC3 61822C3 1822SC3 61822YC3
In stock
Price Break
3+
$246.40
5+
$232.55
10+
$229.79
25+
$227.02
49+
$224.25
74+
$221.48
99+
$207.64
199+
$204.87
249+
$202.10
499+
$199.33
999+
$193.80
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 140mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 140mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 27.5 kN |
| C<sub>or</sub> | 28.2 kN |
| C<sub>u</sub> | 1.68 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 4300 rpm |
| Oil | 5100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 115mm |
| D<sub>a</sub> Max. | 135mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.515 kg |
