SKU: 6817-ZZ/C3-NACHI

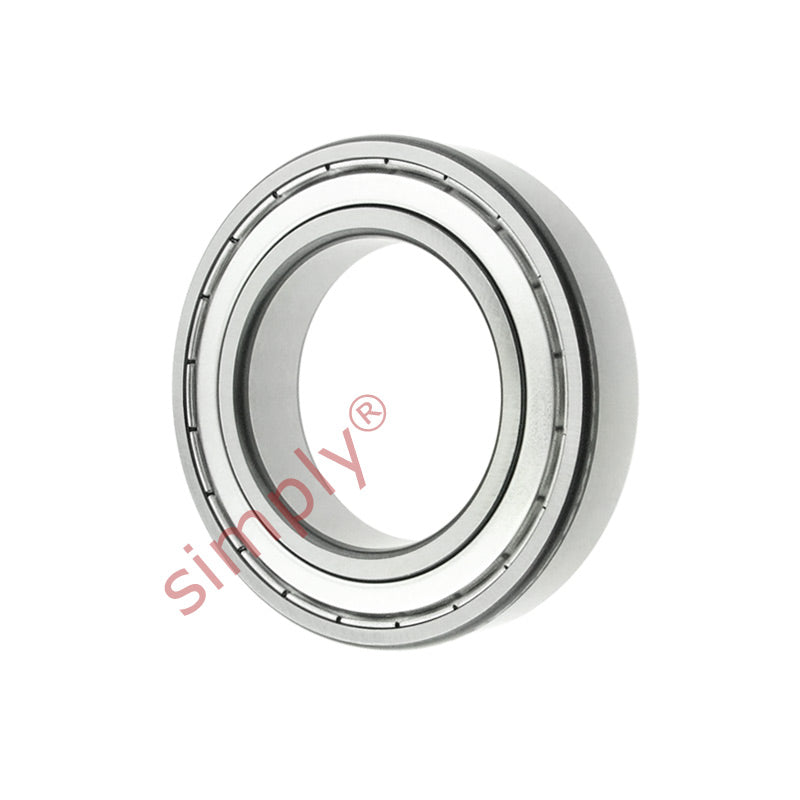

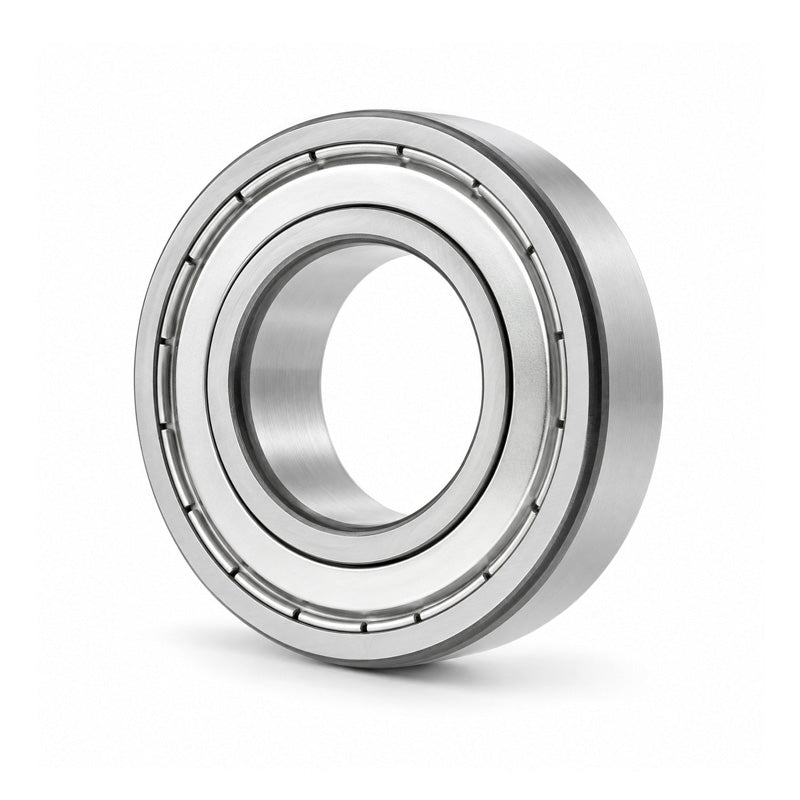

NACHI 6817ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 85x110x13mm
NACHI 6817ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 85x110x13mm
Equivalent to: 6817ZZEC3 68172ZC3 6817.2ZC3 6817KDDC3 6817DDC3 68172ZRC3 6817FFC3 61817ZZEC3 61817ZZC3 618172ZC3 61817.2ZC3 61817KDDC3 61817DDC3 618172ZRC3 61817FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 110mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 85mm |
|---|---|
| Outside Diameter D | 110mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 18700 kN |
| Static load | 19000 kN |
| Max speed | 5700 rpm |
| da min | 90mm |
| Da max | 105mm |
| ra max | 1mm |
| Weight | 0.265 kg |
