SKU: 6813LLB/5K-NTN

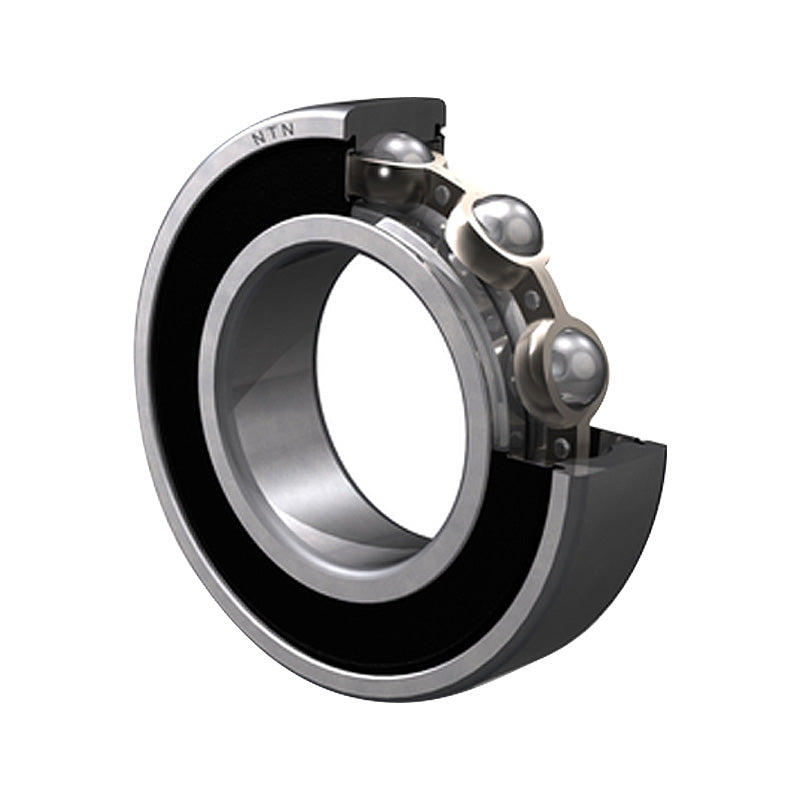

NTN 6813LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 65x85x10mm
NTN 6813LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 65x85x10mm
Regular price
$144.22
ex VAT
Regular price
Sale price
$144.22
ex VAT
Equivalent to: 6813LLBCM 61813LLBCM 6813LLB 61813LLB 68132NKE 6813VV 68132RSL 68132RZ
In stock
Price Break
3+
$68.39
5+
$64.55
10+
$63.78
25+
$63.01
49+
$62.24
74+
$61.47
99+
$57.63
199+
$56.86
249+
$56.09
499+
$55.32
999+
$53.79
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 85mm
- Width:
- 10mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 85mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 12.8 kN |
| C<sub>or</sub> | 11 kN |
| C<sub>u</sub> | 0.73 kN |
| f<sub>0</sub> | 16.2 kN |
| Grease | 7400 rpm |
| Oil | 8700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 69mm |
| d<sub>a</sub> Max. | 70mm |
| D<sub>a</sub> Max. | 81mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.128 kg |
