SKU: 6813-ZZ/C3-NACHI

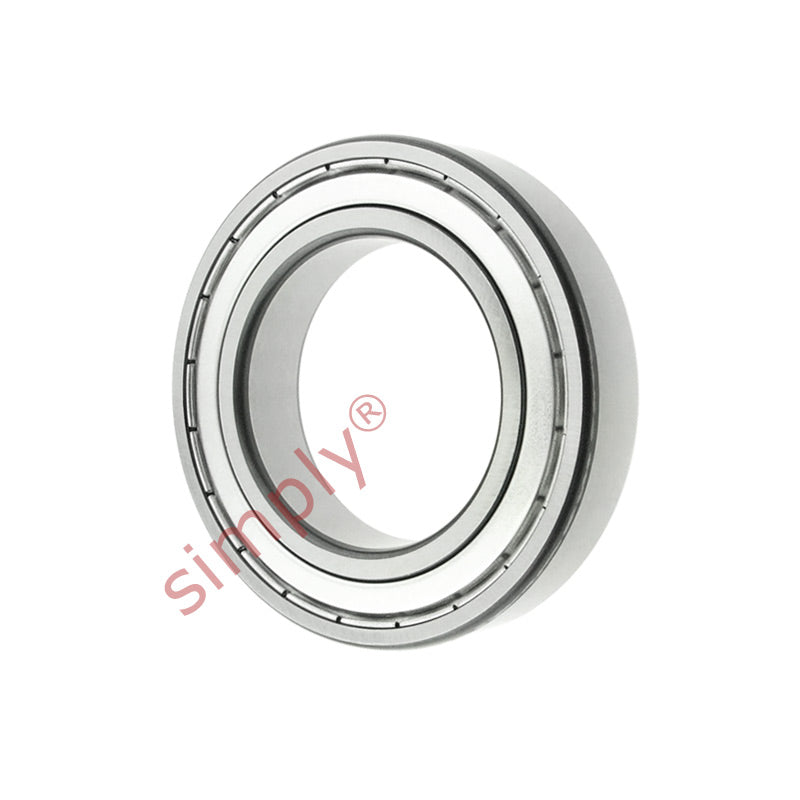

NACHI 6813ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 65x85x10mm
NACHI 6813ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 65x85x10mm
Equivalent to: 6813ZZEC3 68132ZC3 6813.2ZC3 6813KDDC3 6813DDC3 68132ZRC3 6813FFC3 61813ZZEC3 61813ZZC3 618132ZC3 61813.2ZC3 61813KDDC3 61813DDC3 618132ZRC3 61813FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 85mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 65mm |
|---|---|
| Outside Diameter D | 85mm |
| Width B | 10mm |
| Min radius r | 0.6mm |
| Dynamic load | 11900 kN |
| Static load | 11500 kN |
| Max speed | 7500 rpm |
| da min | 69mm |
| Da max | 81mm |
| ra max | 0.6mm |
| Weight | 0.125 kg |
