SKU: 6810-ZZE/C3-NACHI

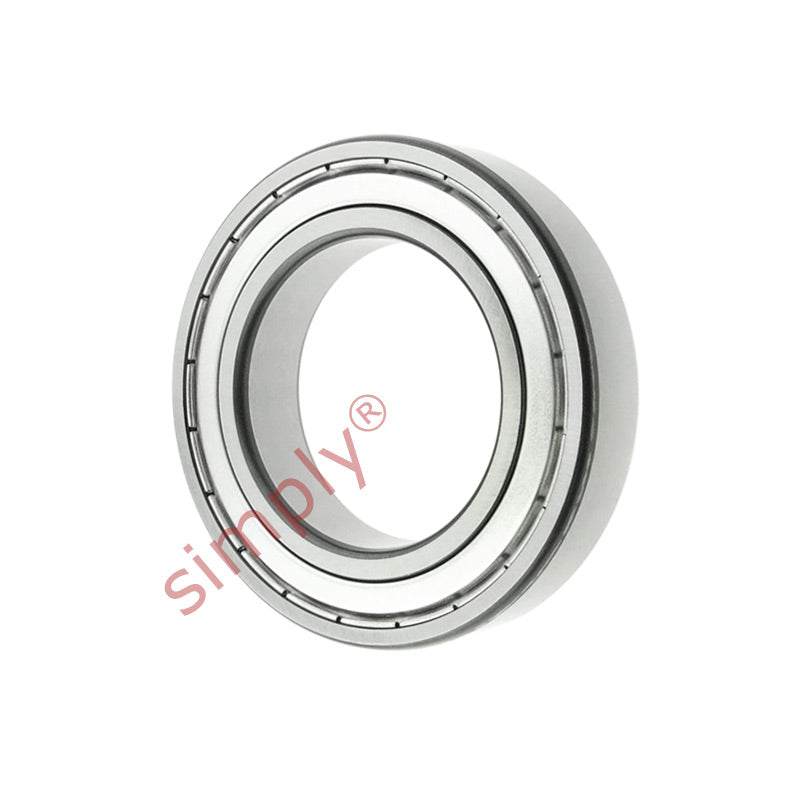

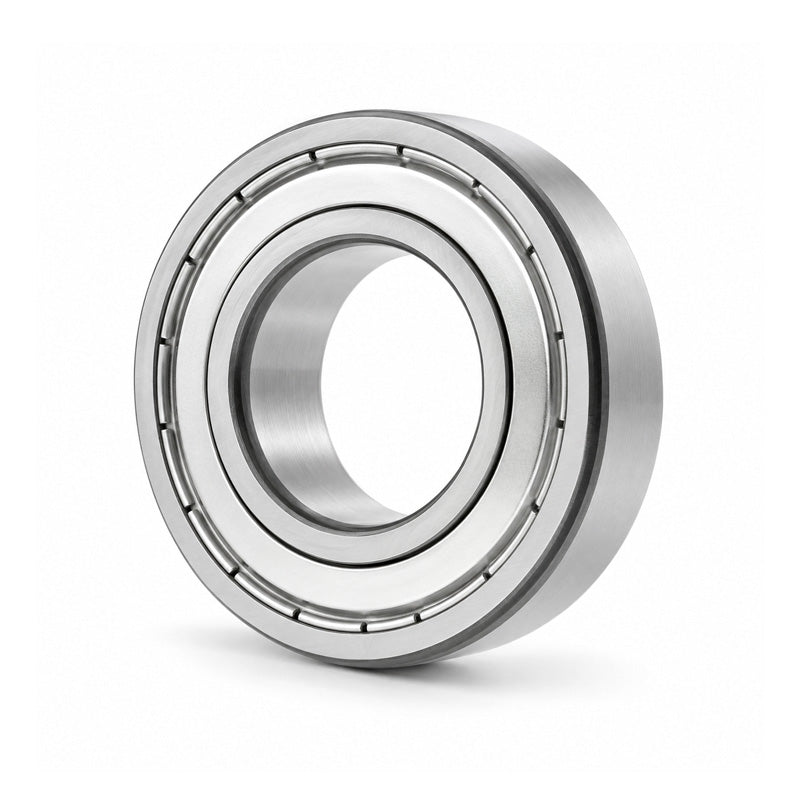

NACHI 6810ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 50x65x7mm
NACHI 6810ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 50x65x7mm
Equivalent to: 6810ZZC3 68102ZC3 6810.2ZC3 6810KDDC3 6810DDC3 68102ZRC3 6810FFC3 61810ZZEC3 61810ZZC3 618102ZC3 61810.2ZC3 61810KDDC3 61810DDC3 618102ZRC3 61810FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 50mm |
|---|---|
| Outside Diameter D | 65mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 6400 kN |
| Static load | 5800 kN |
| Max speed | 10000 rpm |
| da min | 52mm |
| Da max | 63mm |
| ra max | 0.3mm |
| Weight | 0.052 kg |
