SKU: 6807-ZZE/C3-NACHI

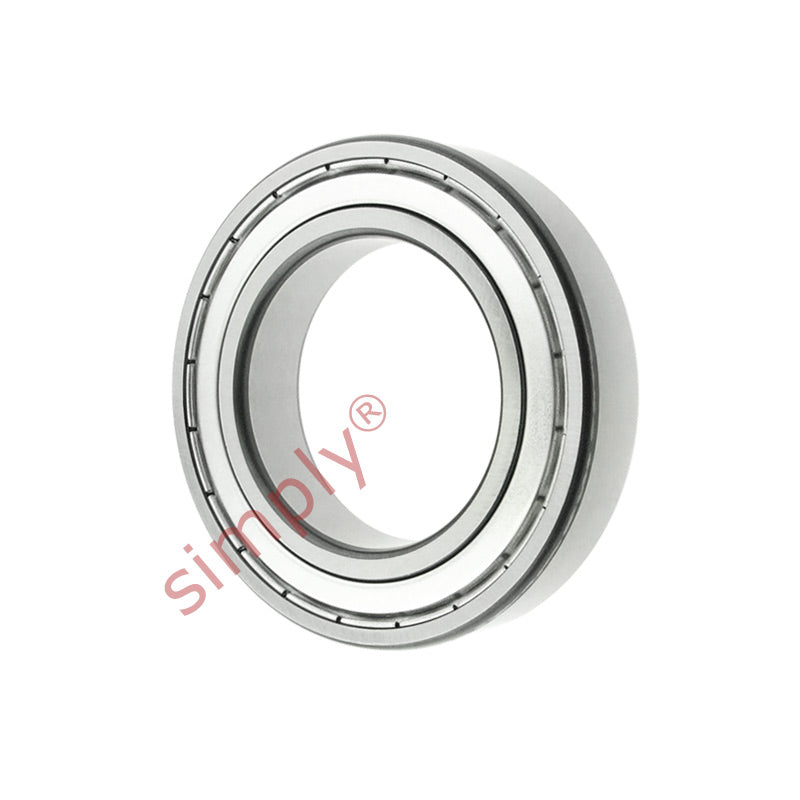

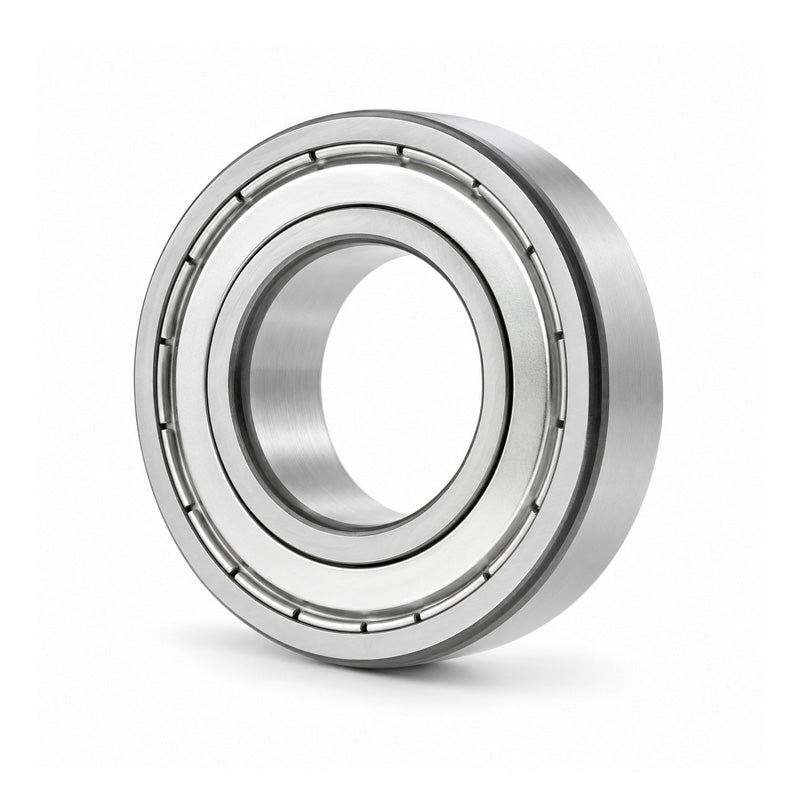

NACHI 6807ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 35x47x7mm
NACHI 6807ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 35x47x7mm
Equivalent to: 6807ZZC3 68072ZC3 6807.2ZC3 6807KDDC3 6807DDC3 68072ZRC3 6807FFC3 61807ZZEC3 61807ZZC3 618072ZC3 61807.2ZC3 61807KDDC3 61807DDC3 618072ZRC3 61807FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 35mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 4750 kN |
| Static load | 3800 kN |
| Max speed | 14000 rpm |
| da min | 37mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Weight | 0.029 kg |
