SKU: 6807-2NSE/C3-NACHI

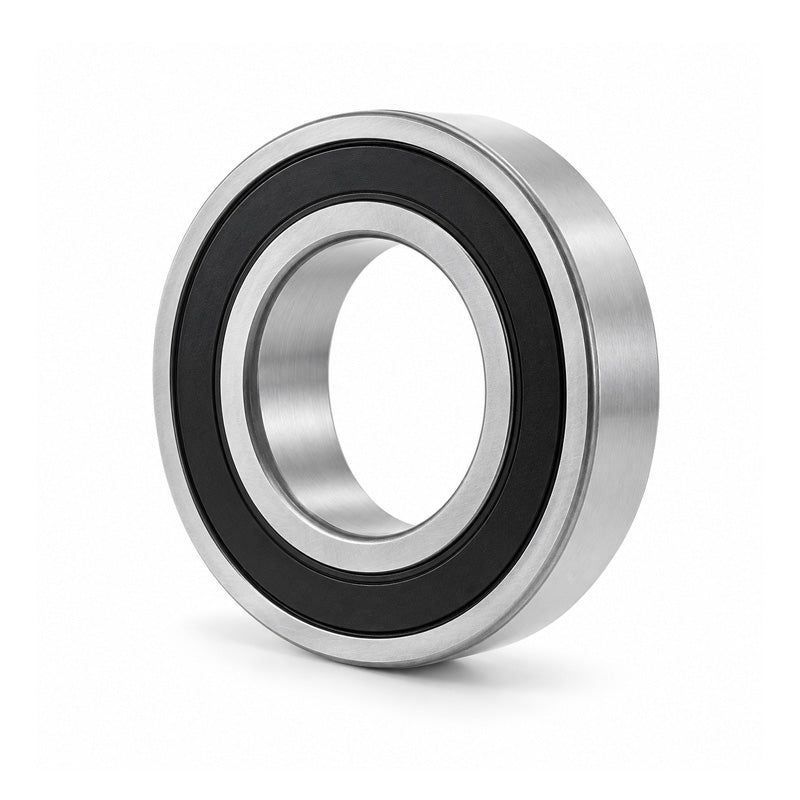

NACHI 68072NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 35x47x7mm
NACHI 68072NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 35x47x7mm
Equivalent to: 6807NSEC3 6807DUC3 6807RSC3 6807RSHC3 6807PC3 6807RSRC3 6807LUC3 61807NSEC3 61807DUC3 61807RSC3 61807RSHC3 61807PC3 61807RSRC3 61807LUC3 6807DDUC3 68072RSC3 68072RS1C3 68072RSHC3 6807PPC3 68072RSRC3 6807LLUC3 618072NSEC3 61807DDUC3 618072RSC3 618072RS1C3 618072RSHC3 61807PPC3 618072RSRC3 61807LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical

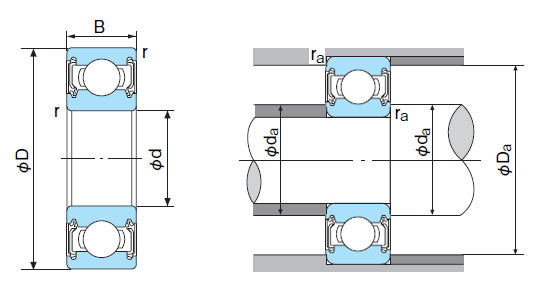

| Inside Diameter d | 35mm |
|---|---|
| Outside Diameter D | 47mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 4750 kN |
| Static load | 3800 kN |
| Max speed | 14000 rpm |
| da min | 37mm |
| Da max | 45mm |
| ra max | 0.3mm |
| Weight | 0.029 kg |
