SKU: 6806-2NSE/C3-NACHI

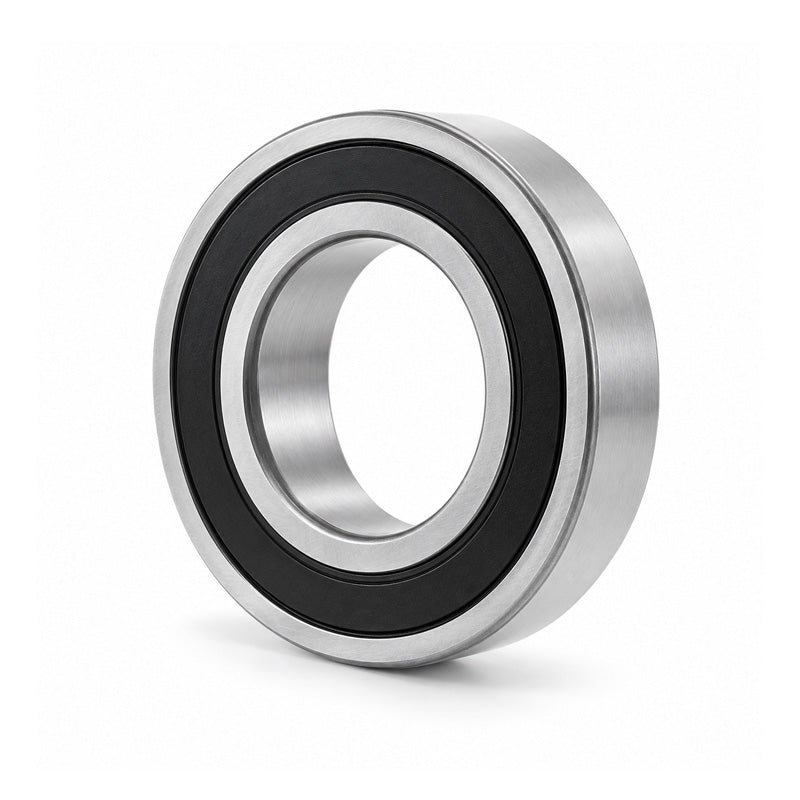

NACHI 68062NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 30x42x7mm
NACHI 68062NSEC3 Thin Section Contact Rubber Sealed Deep Groove Ball Bearing 30x42x7mm
Equivalent to: 6806NSEC3 6806DUC3 6806RSC3 6806RSHC3 6806PC3 6806RSRC3 6806LUC3 61806NSEC3 61806DUC3 61806RSC3 61806RSHC3 61806PC3 61806RSRC3 61806LUC3 6806DDUC3 68062RSC3 68062RS1C3 68062RSHC3 6806PPC3 68062RSRC3 6806LLUC3 618062NSEC3 61806DDUC3 618062RSC3 618062RS1C3 618062RSHC3 61806PPC3 618062RSRC3 61806LLUC3
Out of stock
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 30mm |
|---|---|
| Outside Diameter D | 42mm |
| Width B | 7mm |
| Min radius r | 0.3mm |
| Dynamic load | 5350 kN |
| Static load | 3800 kN |
| Max speed | 15000 rpm |
| da min | 32mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Weight | 0.026 kg |
