SKU: 6805JRZZC3/5K-NTN

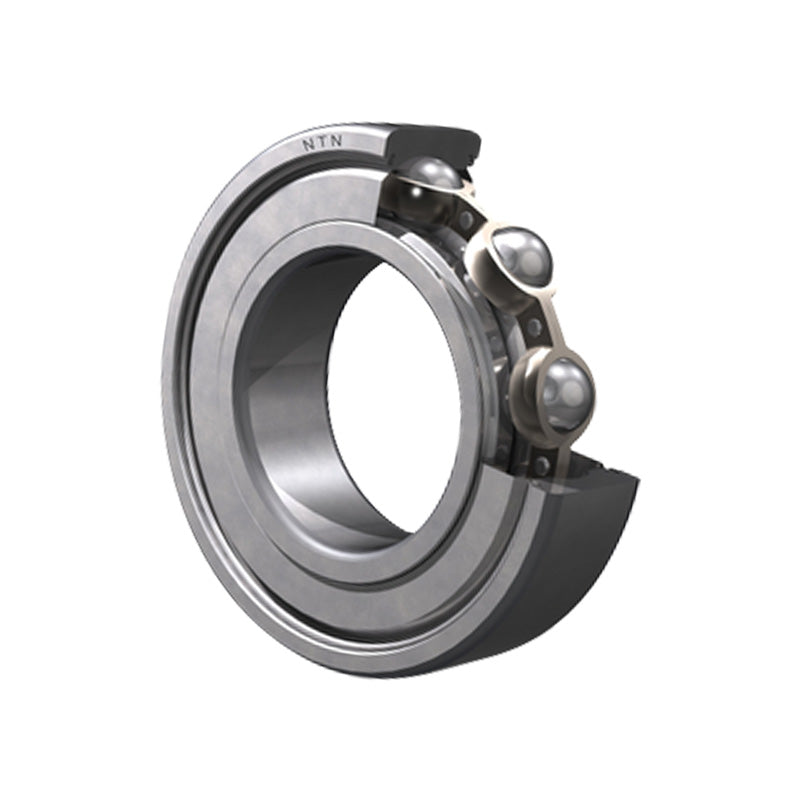

NTN 6805JRZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 25x37x7mm
Equivalent to: 61805JRZZC3 6805ZZC3 68052ZC3 6805ZZC3 68052ZRC3 6805ZZEC3 6805FFC3 6805DDC3 6805DDCC3 6805KDDCC3 EL252ZC3 EL25ZZC3 9105KDDC3 9105FFC3 105KSFFC3 773L05C3 6105PPC3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 37mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 37mm |
| B | 7mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 4.75 kN |
| C<sub>or</sub> | 2.95 kN |
| C<sub>u</sub> | 0.208 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 18000 rpm |
| Oil | 21000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 27mm |
| d<sub>a</sub> Max. | 28mm |
| D<sub>a</sub> Max. | 35mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.022 kg |
