SKU: 6800-2NKE-NACHI

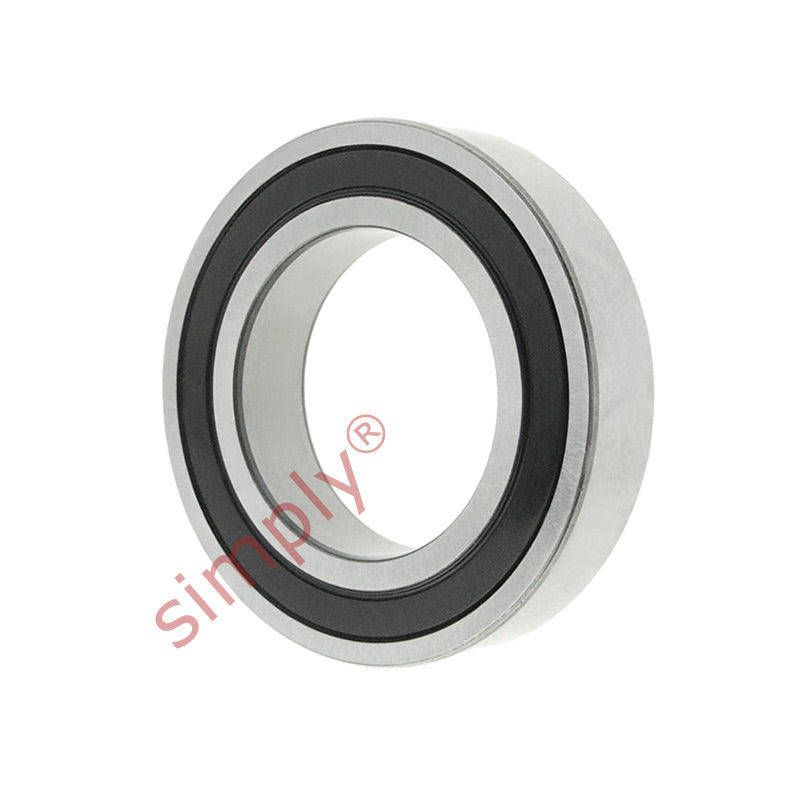

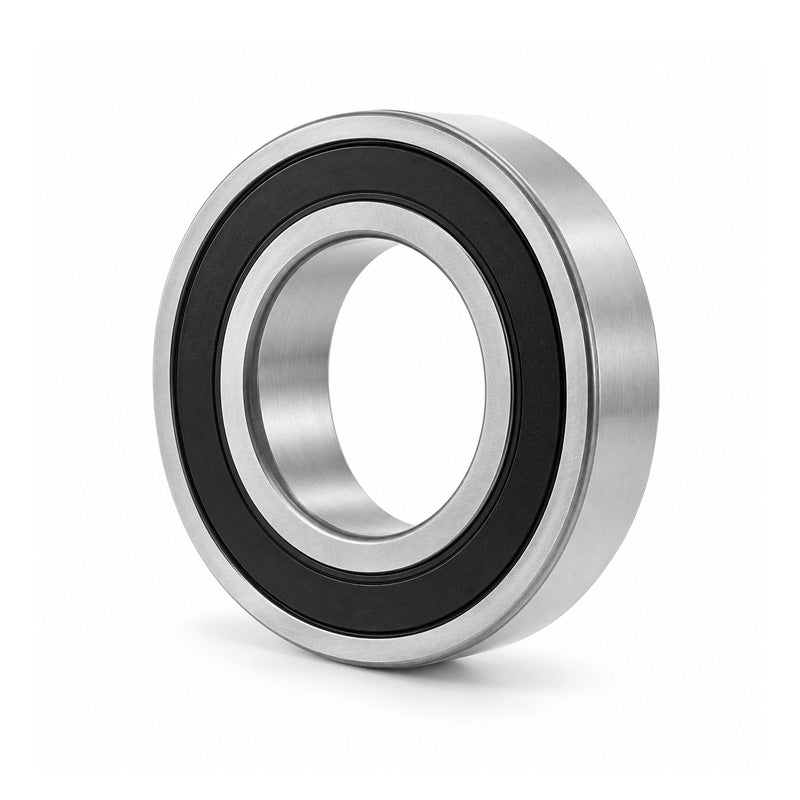

NACHI 68002NKE Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 10x19x5mm
NACHI 68002NKE Thin Section Non Contact Low Friction Sealed Deep Groove Ball Bearing 10x19x5mm
Equivalent to: 6800NKE 618002NKE 61800NKE
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 19mm |
| Width B | 5mm |
| Min radius r | 0.3mm |
| Dynamic load | 2120 kN |
| Static load | 985 kN |
| Max speed | 37000 rpm |
| da min | 12mm |
| Da max | 17mm |
| ra max | 0.3mm |
| Weight | 0.005 kg |
