SKU: 6408NR-SKF

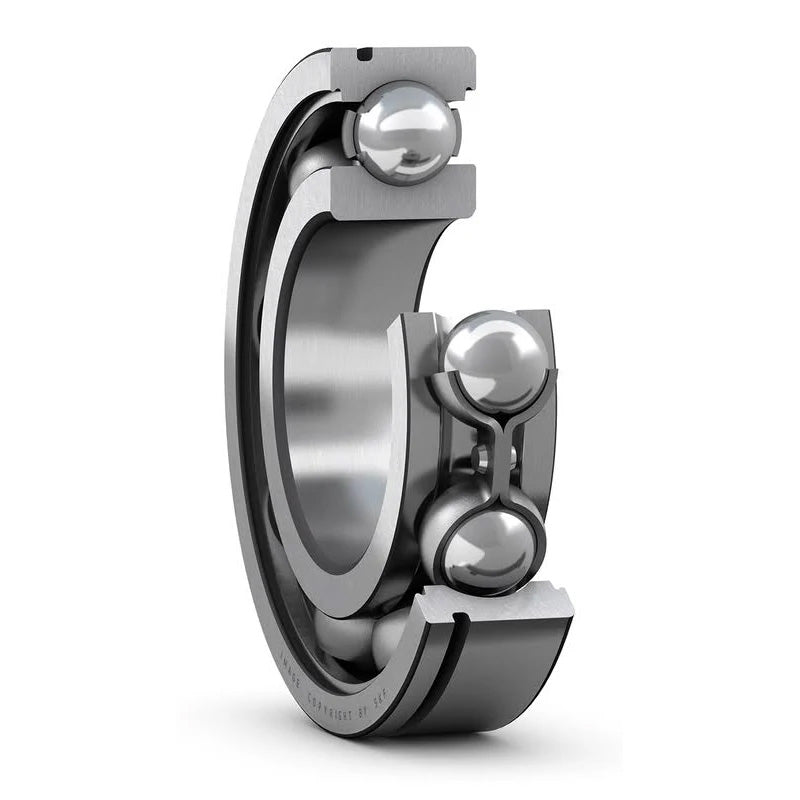

SKF 6408NR Open Type Snap Ring Deep Groove Bearing 40x110x27mm
SKF 6408NR Open Type Snap Ring Deep Groove Bearing 40x110x27mm
Out of stock
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 40mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 36.5 kN |
| Fatigue load limit Pu | 1.53 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 1.25kg |
| Snap ring | SP 110 |
| d1 | 62.8mm |
| D2 | 87mm |
| D3 | 106.81mm |
| D4 | 116.6mm |
| b | 2.7mm |
| f | 2.46mm |
| C | 3.28mm |
| r1r2 min | 1.5mm |
| ro max | 0.6mm |
| da min | 53mm |
| Da max | 97mm |
| Db min | 118mm |
| ba min | 3mm |
| Ca max | 5.74mm |
| ra max | 2mm |
| Calc Factor kr | 0.035 |
| fo | 12 |
