SKU: 6336C3-NTN

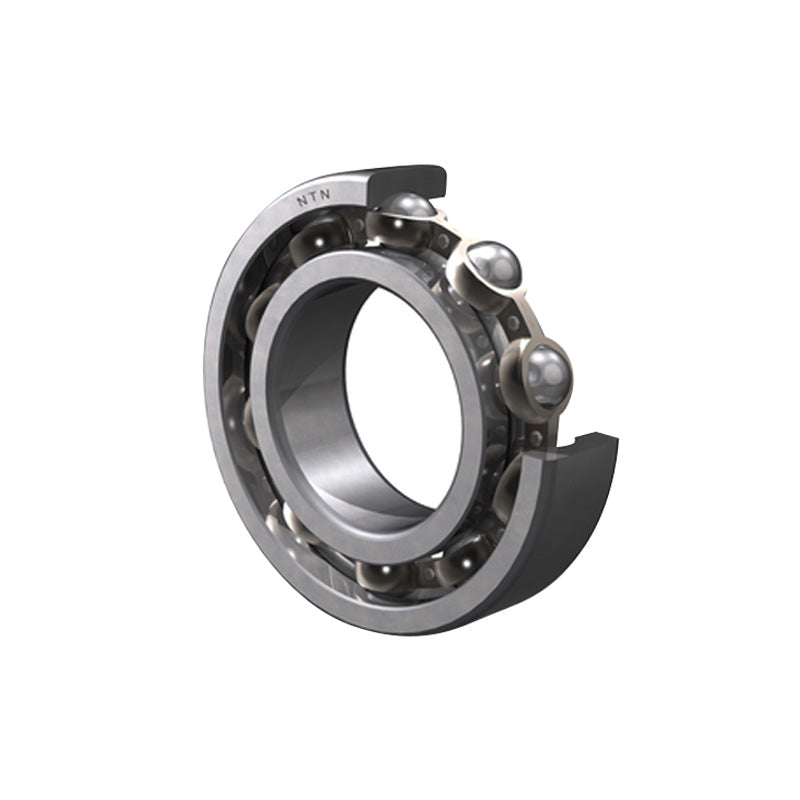

NTN 6336C3 Open Type Deep Groove Ball Bearing 180x380x75mm
NTN 6336C3 Open Type Deep Groove Ball Bearing 180x380x75mm
Regular price
$5,437.27
ex VAT
Regular price
Sale price
$5,437.27
ex VAT
Equivalent to: 336KC3 1336C3 336KSC3 6336C3 3336C3 180BC03C3
In stock
Price Break
3+
$2,578.36
5+
$2,433.51
10+
$2,404.53
25+
$2,375.56
49+
$2,346.59
74+
$2,317.62
99+
$2,172.77
199+
$2,143.80
249+
$2,114.83
499+
$2,085.86
999+
$2,027.92
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 380mm
- Width:
- 75mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 180mm |
| D | 380mm |
| B | 75mm |
| r<sub>s</sub> min | 4mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 390 kN |
| C<sub>or</sub> | 405 kN |
| C<sub>u</sub> | 19 kN |
| f<sub>0</sub> | 13.9 kN |
| Grease | 1700 rpm |
| Oil | 2000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 196mm |
| D<sub>a</sub> Max. | 364mm |
| r<sub>as</sub> Max. | 3mm |
| Weight | 35.6 kg |
