SKU: 6328C3-NSK
NSK 6328C3 Open Type Deep Groove Ball Bearing 140x300x62mm
NSK 6328C3 Open Type Deep Groove Ball Bearing 140x300x62mm
Regular price
$1,902.26
ex VAT
Regular price
Sale price
$1,902.26
ex VAT
In stock
Price Break
4+
$902.05
10+
$851.38
20+
$841.24
30+
$831.11
50+
$820.97
75+
$810.83
100+
$760.16
200+
$750.02
250+
$739.89
500+
$729.75
1000+
$709.48
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 300mm
- Width:
- 62mm
- Seals / Shields:
- None
- Clearance:
- C3

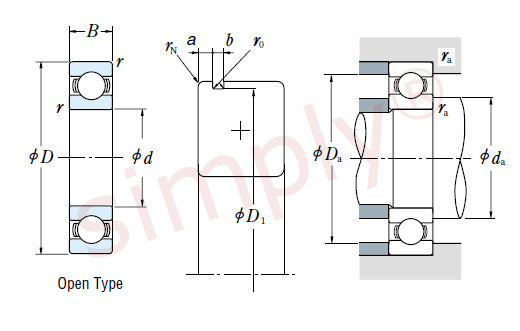

Technical
Technical
| d | 140mm |
|---|---|
| D | 300mm |
| B | 62mm |
| r min | 4mm |
| Dynamic load Cr | 253000 N (25800 kgf) |
| Static load Cor | 246000 N (25100 kgf) |
| Factor | 13.6 |
| Speed in grease | 2000 rpm |
| Speed in oil | 2400 rpm |
| Mass | 18.5 kg |
