SKU: 6326C3-NTN

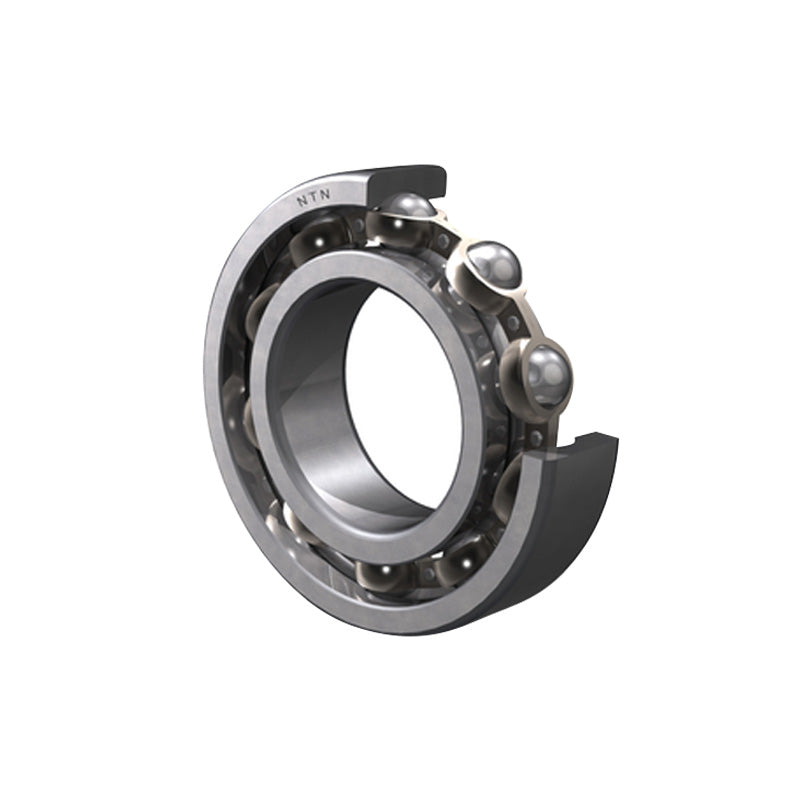

NTN 6326C3 Open Type Deep Groove Ball Bearing 130x280x58mm
NTN 6326C3 Open Type Deep Groove Ball Bearing 130x280x58mm
Regular price
$2,220.33
ex VAT
Regular price
Sale price
$2,220.33
ex VAT
Equivalent to: 326KC3 1326C3 326KSC3 6326C3 3326C3 25BC3 130BC03C3
In stock
Price Break
3+
$1,052.88
5+
$993.73
10+
$981.90
25+
$970.07
49+
$958.24
74+
$946.41
99+
$887.26
199+
$875.43
249+
$863.60
499+
$851.77
999+
$828.11
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 280mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 130mm |
| D | 280mm |
| B | 58mm |
| r<sub>s</sub> min | 4mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 254 kN |
| C<sub>or</sub> | 214 kN |
| C<sub>u</sub> | 11.7 kN |
| f<sub>0</sub> | 13.6 kN |
| Grease | 2400 rpm |
| Oil | 2800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 146mm |
| D<sub>a</sub> Max. | 264mm |
| r<sub>as</sub> Max. | 3mm |
| Weight | 15.3 kg |
