SKU: 6324-ZZ/C3-NACHI

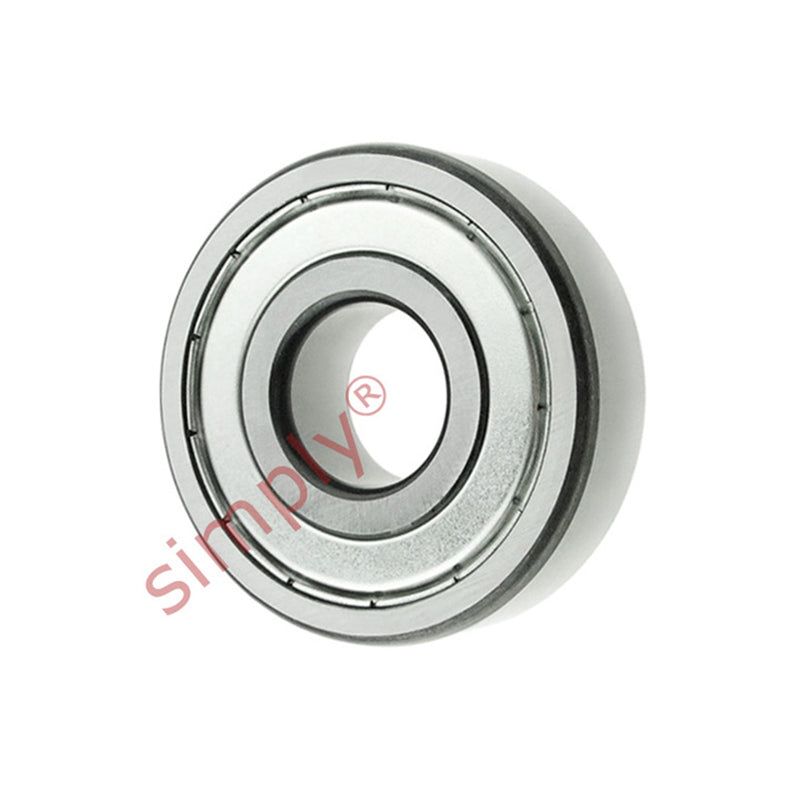

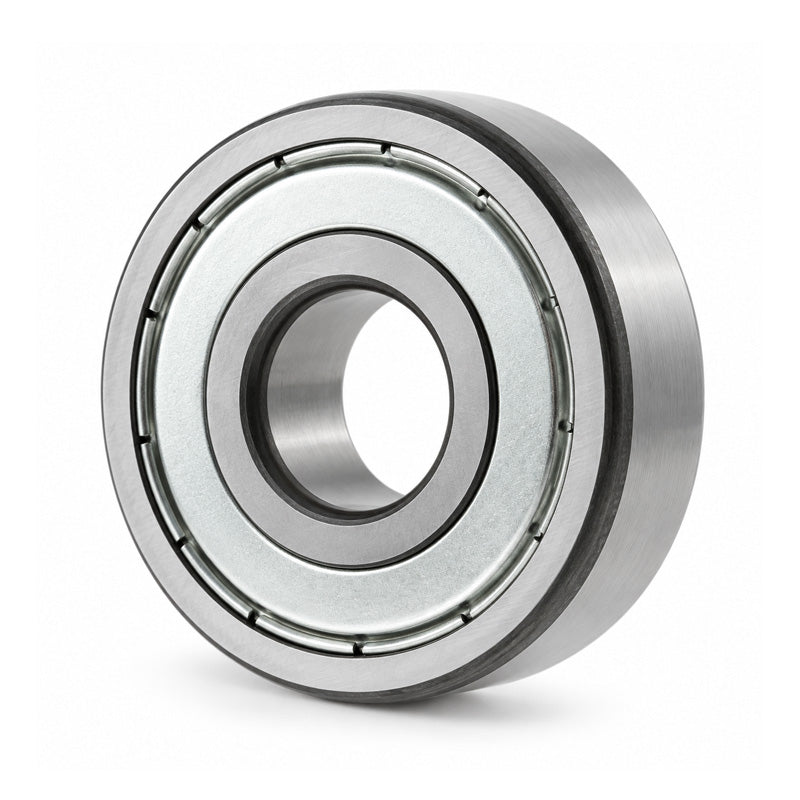

NACHI 6324ZZC3 Metal Shielded Deep Groove Ball Bearing 120x260x55mm
NACHI 6324ZZC3 Metal Shielded Deep Groove Ball Bearing 120x260x55mm
Equivalent to: 6324ZZEC3 63242ZC3 6324.2ZC3 6324KDDC3 6324DDC3 63242ZRC3 6324FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 120mm |
|---|---|
| Outside Diameter D | 260mm |
| Width B | 55mm |
| Min radius r | 3mm |
| Dynamic load | 207000 kN |
| Static load | 185000 kN |
| Max speed | 2600 rpm |
| da min | 134mm |
| Da max | 246mm |
| ra max | 2.5mm |
| Weight | 14.6 kg |
