SKU: 6322LLU/2AS-NTN

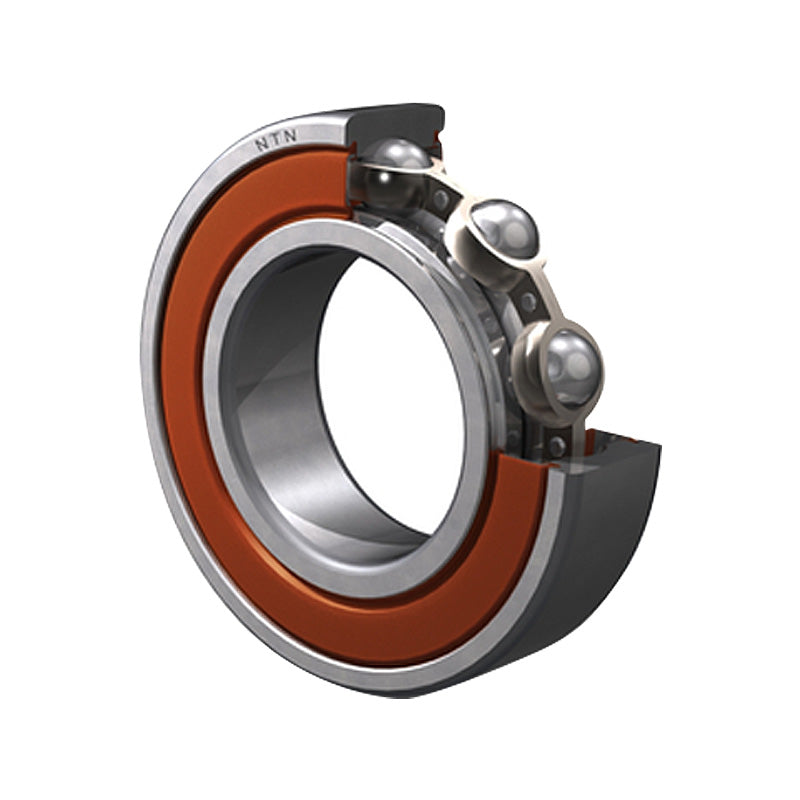

NTN 6322LLU/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing 110x240x50mm
Equivalent to: 6322LLUCM 6322LLU 6322NSE 6322DU 6322RS 6322RSH 6322P 6322RSR 6322LU 63222NSE 6322DDU 63222RS 6322-2RS 63222RS1 63222RSH 6322PP 63222RSR 6322LLU 6322RS2 63222RS2 63222RSL 6322LFS 6322EE 322P 322SZ Z9622 1322R
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 240mm
- Width:
- 50mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 240mm |
| B | 50mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 227 kN |
| C<sub>or</sub> | 179 kN |
| C<sub>u</sub> | 10.5 kN |
| f<sub>0</sub> | 13.1 kN |
| Speed | 1900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 123mm |
| d<sub>a</sub> Max. | 149mm |
| D<sub>a</sub> Max. | 227mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight Kg | 9.54 kg |
