SKU: 6322C4-NTN

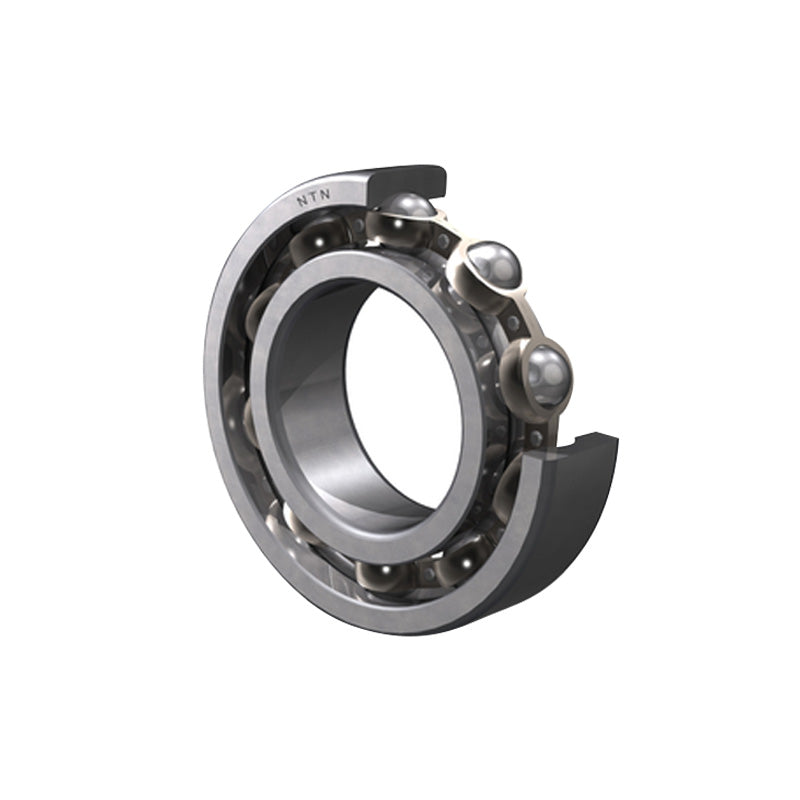

NTN 6322C4 Open Type Deep Groove Ball Bearing 110x240x50mm
NTN 6322C4 Open Type Deep Groove Ball Bearing 110x240x50mm
Regular price
$1,415.76
ex VAT
Regular price
Sale price
$1,415.76
ex VAT
Equivalent to: 322KC4 1322C4 322KSC4 6322C4 3322C4 23BC4 110BC03C4
In stock
Price Break
3+
$671.35
5+
$633.64
10+
$626.09
25+
$618.55
49+
$611.01
74+
$603.46
99+
$565.75
199+
$558.20
249+
$550.66
499+
$543.12
999+
$528.03
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 240mm
- Width:
- 50mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 240mm |
| B | 50mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 227 kN |
| C<sub>or</sub> | 179 kN |
| C<sub>u</sub> | 10.5 kN |
| f<sub>0</sub> | 13.1 kN |
| Grease | 2900 rpm |
| Oil | 3400 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 123mm |
| D<sub>a</sub> Max. | 227mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 9.54 kg |
