SKU: 6320-2NK/C3-NACHI

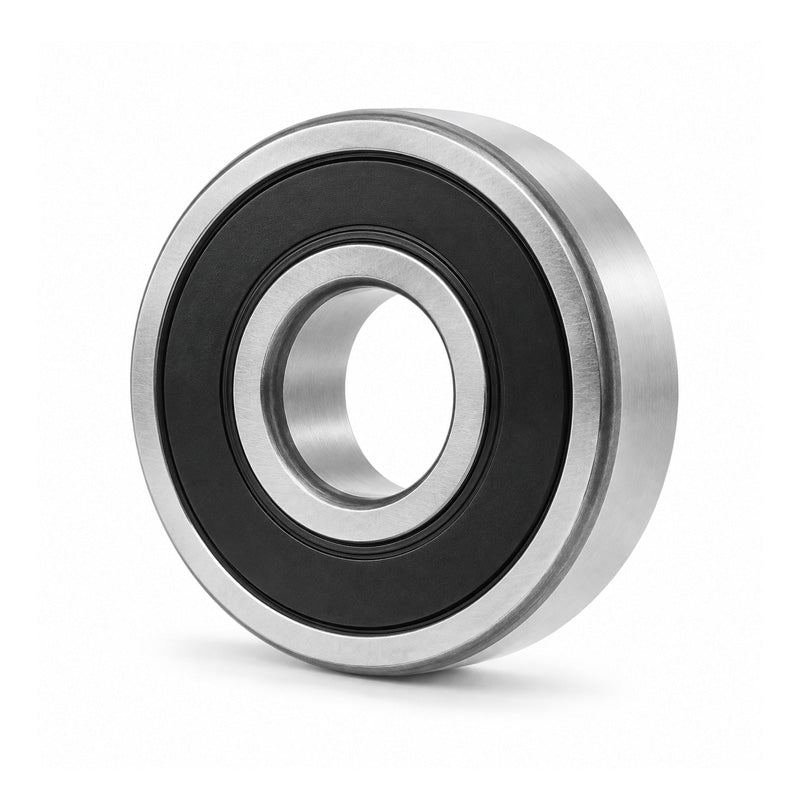

NACHI 63202NKC3 Non Contact Low Friction Sealed Deep Groove Ball Bearing 100x215x47mm
NACHI 63202NKC3 Non Contact Low Friction Sealed Deep Groove Ball Bearing 100x215x47mm
Equivalent to: 6320NKC3
Out of stock
Description
Description
|
NACHI Non-contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two non-contact rubber seals to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation, good grease sealing, good protection against dust, low friction. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 100mm |
|---|---|
| Outside Diameter D | 215mm |
| Width B | 47mm |
| Min radius r | 3mm |
| Dynamic load | 173000 kN |
| Static load | 141000 kN |
| Max speed | 3200 rpm |
| da min | 114mm |
| Da max | 201mm |
| ra max | 2.5mm |
| Weight | 7 kg |
