SKU: 6315C3-NTN

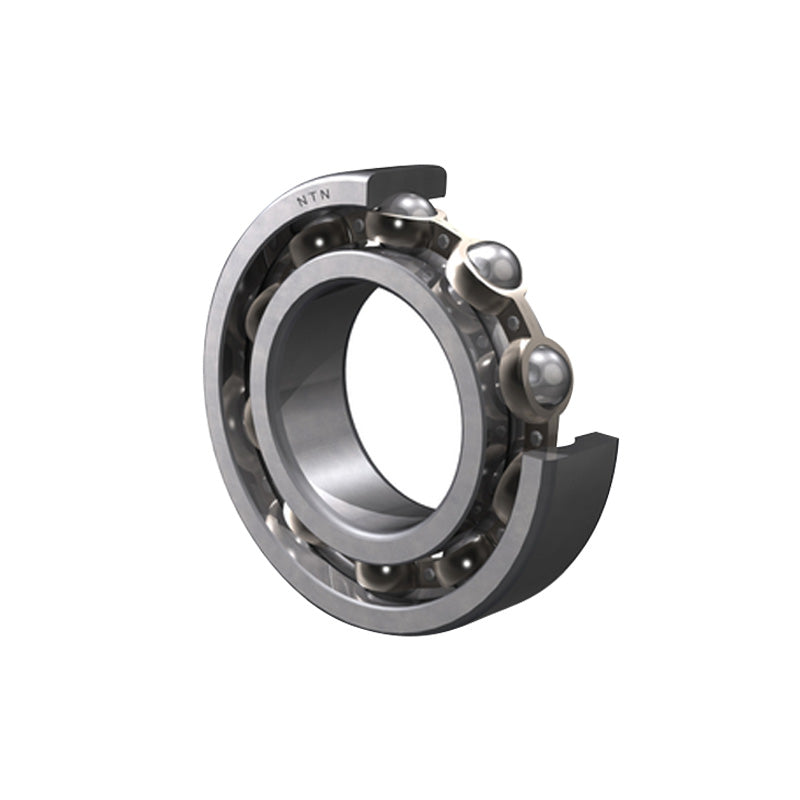

NTN 6315C3 Open Type Deep Groove Ball Bearing 75x160x37mm
NTN 6315C3 Open Type Deep Groove Ball Bearing 75x160x37mm
Regular price
$201.85
ex VAT
Regular price
Sale price
$201.85
ex VAT
Equivalent to: 315KC3 1315C3 315KSC3 6315C3 3315C3 16BC3
In stock
Price Break
3+
$95.72
5+
$90.34
10+
$89.27
25+
$88.19
49+
$87.12
74+
$86.04
99+
$80.66
199+
$79.59
249+
$78.51
499+
$77.44
999+
$75.29
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 160mm |
| B | 37mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 126 kN |
| C<sub>or</sub> | 77 kN |
| C<sub>u</sub> | 5.55 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 4300 rpm |
| Oil | 5000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 86mm |
| D<sub>a</sub> Max. | 149mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 3.02 kg |
