SKU: 6313LLUC3/5K-NTN

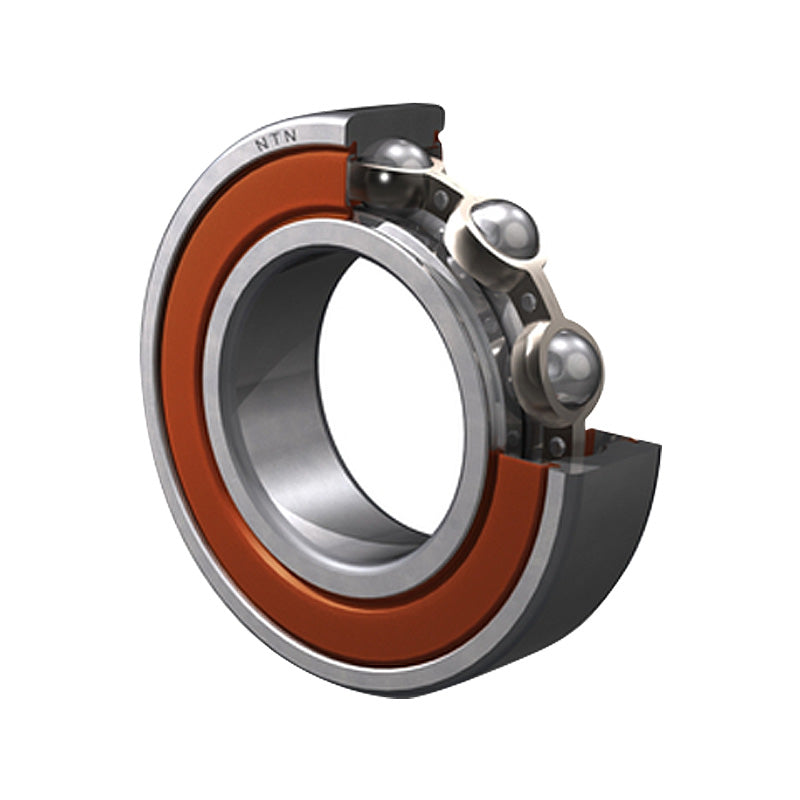

NTN 6313LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 65x140x33mm
Equivalent to: 6313NSEC3 6313DUC3 6313RSC3 6313RSHC3 6313PC3 6313RSRC3 6313LUC3 63132NSEC3 6313DDUC3 63132RSC3 6313-2RSC3 63132RS1C3 63132RSHC3 6313PPC3 63132RSRC3 6313LLUC3 6313RS2C3 63132RS2C3 63132RSLC3 6313LFSC3 6313EEC3 313PC3 313SZC3 Z9613C3 1313RC3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 140mm |
| B | 33mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 103 kN |
| C<sub>or</sub> | 60 kN |
| C<sub>u</sub> | 4.6 kN |
| f<sub>0</sub> | 13.2 kN |
| Speed | 3300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 76mm |
| d<sub>a</sub> Max. | 86mm |
| D<sub>a</sub> Max. | 129mm |
| r<sub>as</sub> Max. | 2mm |
| Weight Kg | 2.08 kg |
