SKU: 6310NR-NTN

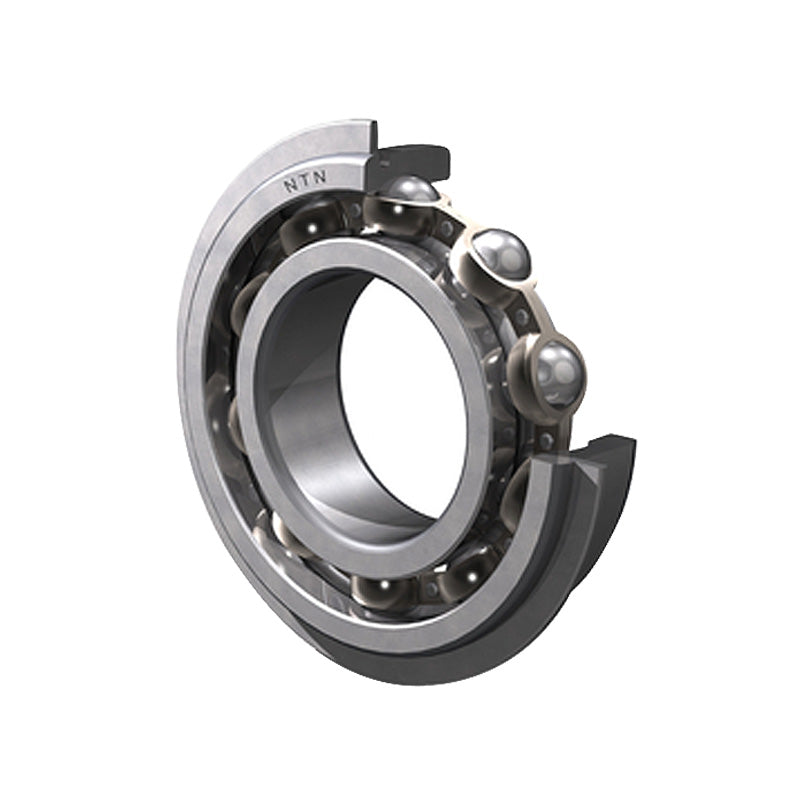

NTN 6310NR Open Type Deep Groove Ball Bearing with Snap Ring 50x110x27mm
NTN 6310NR Open Type Deep Groove Ball Bearing with Snap Ring 50x110x27mm
Regular price
$167.08
ex VAT
Regular price
Sale price
$167.08
ex VAT
Equivalent to: 6310NRCM 310KG 310SG 43310
In stock
Price Break
3+
$79.23
5+
$74.78
10+
$73.89
25+
$73.00
49+
$72.11
74+
$71.22
99+
$66.77
199+
$65.87
249+
$64.98
499+
$64.09
999+
$62.31
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical

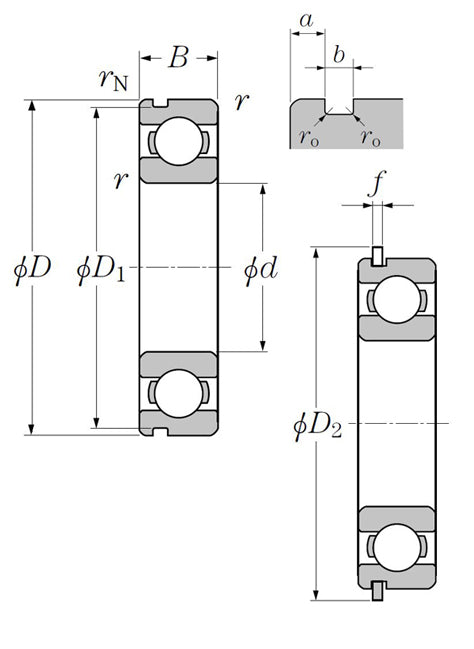

| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 110mm |
| B | 27mm |
| r<sub>s</sub> min | 2mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 68.5 kN |
| C<sub>or</sub> | 38.5 kN |
| C<sub>u</sub> | 2.99 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 6400 rpm |
| Oil | 7500 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 106.81mm |
| a Max. | 3.28mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 116.6mm |
| f Max. | 2.46mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 59mm |
| d<sub>a</sub> Max. | 68.5mm |
| D<sub>a</sub> Max. | 101mm |
| D<sub>X</sub> (approx) | 118mm |
| C<sub>Y</sub> Max. | 5.4mm |
| C<sub>Z</sub> Min. | 2.5mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 1.07 kg |
