SKU: 6310LLUC3/5K-NTN

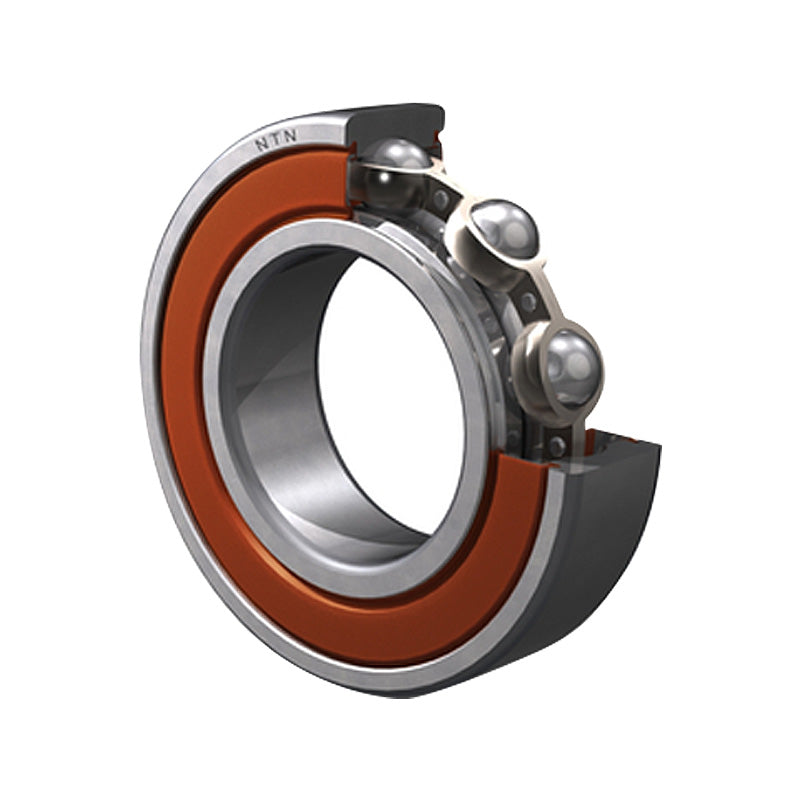

NTN 6310LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 50x110x27mm
Equivalent to: 6310NSEC3 6310DUC3 6310RSC3 6310RSHC3 6310PC3 6310RSRC3 6310LUC3 63102NSEC3 6310DDUC3 63102RSC3 6310-2RSC3 63102RS1C3 63102RSHC3 6310PPC3 63102RSRC3 6310LLUC3 6310RS2C3 63102RS2C3 63102RSLC3 6310LFSC3 6310EEC3 310PC3 310SZC3 Z9610C3 1310RC3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 110mm |
| B | 27mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 68.5 kN |
| C<sub>or</sub> | 38.5 kN |
| C<sub>u</sub> | 2.99 kN |
| f<sub>0</sub> | 13.2 kN |
| Speed | 4200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 59mm |
| d<sub>a</sub> Max. | 68.5mm |
| D<sub>a</sub> Max. | 101mm |
| r<sub>as</sub> Max. | 2mm |
| Weight Kg | 1.07 kg |
