SKU: 6308LLUC3/5K-NTN

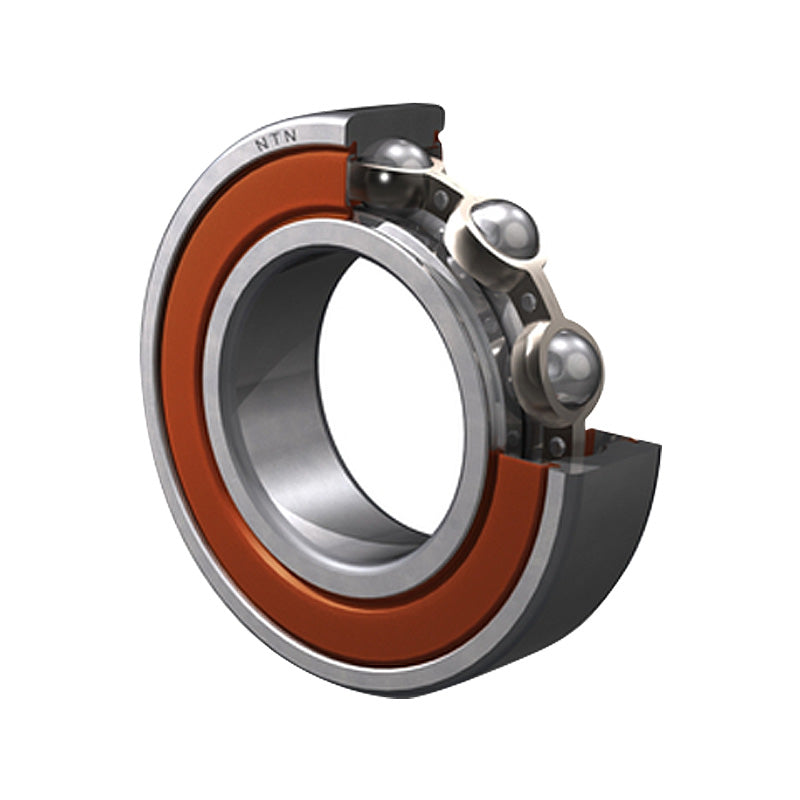

NTN 6308LLUC3/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 40x90x23mm
Equivalent to: 6308NSEC3 6308DUC3 6308RSC3 6308RSHC3 6308PC3 6308RSRC3 6308LUC3 63082NSEC3 6308DDUC3 63082RSC3 6308-2RSC3 63082RS1C3 63082RSHC3 6308PPC3 63082RSRC3 6308LLUC3 6308RS2C3 63082RS2C3 63082RSLC3 6308LFSC3 6308EEC3 308PC3 308SZC3 Z9608C3 1308RC3
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 90mm |
| B | 23mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 45 kN |
| C<sub>or</sub> | 24 kN |
| C<sub>u</sub> | 1.83 kN |
| f<sub>0</sub> | 13.2 kN |
| Speed | 5300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 48mm |
| d<sub>a</sub> Max. | 54mm |
| D<sub>a</sub> Max. | 82mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight Kg | 0.63 kg |
