SKU: 6307ZZNR/5K-NTN

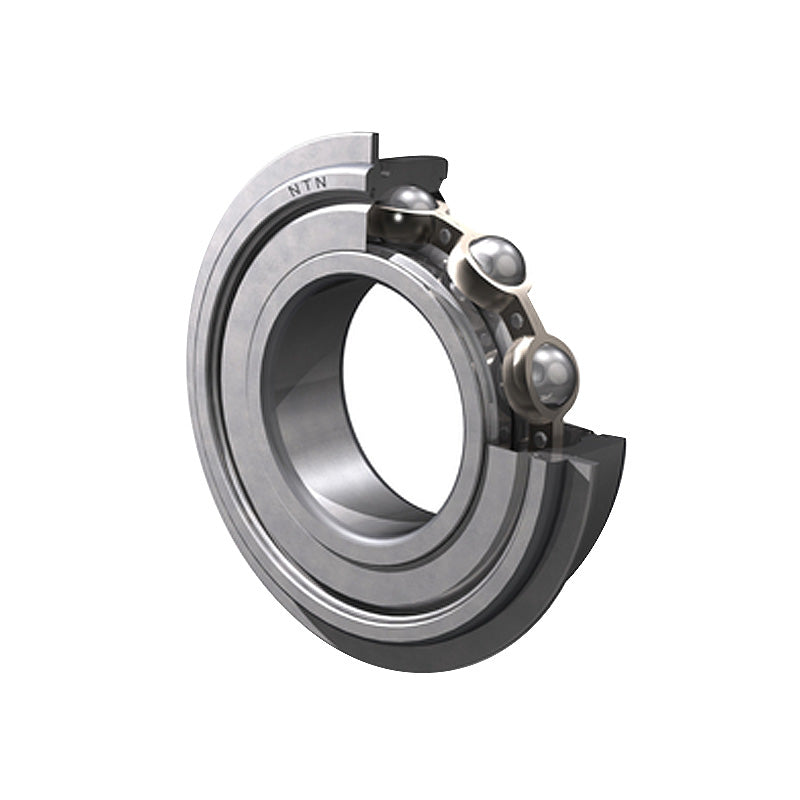

NTN 6307ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x80x21mm
Equivalent to: 6307ZZNRCM 6307ZZNR 6307ZZNR 63072ZNR 6307ZZNR 63072ZRNR 6307ZZENR 6307FFNR 6307DDNR 6307DDCNR 6307KDDCNR EL352ZNR EL35ZZNR 9107KDDG 4773L07 107KSFFG
In stock
Price Break
Couldn't load pickup availability
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 80mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 37 kN |
| C<sub>or</sub> | 19.1 kN |
| C<sub>u</sub> | 1.47 kN |
| f<sub>0</sub> | 13.1 rpm |
| Grease | 8800 rpm |
| --- | Fitting Dimensions |
| Oil | 10000 rpm |
| D<sub>1</sub> Max. | 76.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
