SKU: 6305LLU/5K-NTN

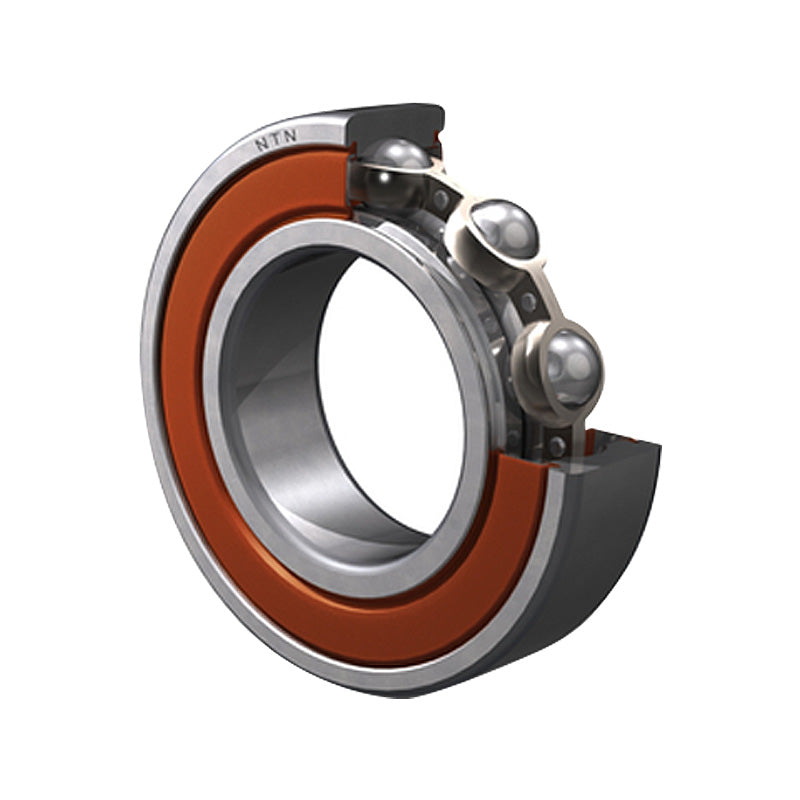

NTN 6305LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 25x62x17mm
Equivalent to: 6305LLUCM 6305NSE 6305DU 6305RS 6305RSH 6305P 6305RSR 6305LU 63052NSE 6305DDU 63052RS 6305-2RS 63052RS1 63052RSH 6305PP 63052RSR 6305LLU 6305RS2 63052RS2 63052RSL 6305LFS 6305EE 305P 305SZ Z9605 1305R
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 62mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 23.5 kN |
| C<sub>or</sub> | 10.9 kN |
| C<sub>u</sub> | 0.855 kN |
| f<sub>0</sub> | 12.6 kN |
| Speed | 8100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 31.5mm |
| d<sub>a</sub> Max. | 35mm |
| D<sub>a</sub> Max. | 55.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.232 kg |
