SKU: 6304-2RSH/C3-EU

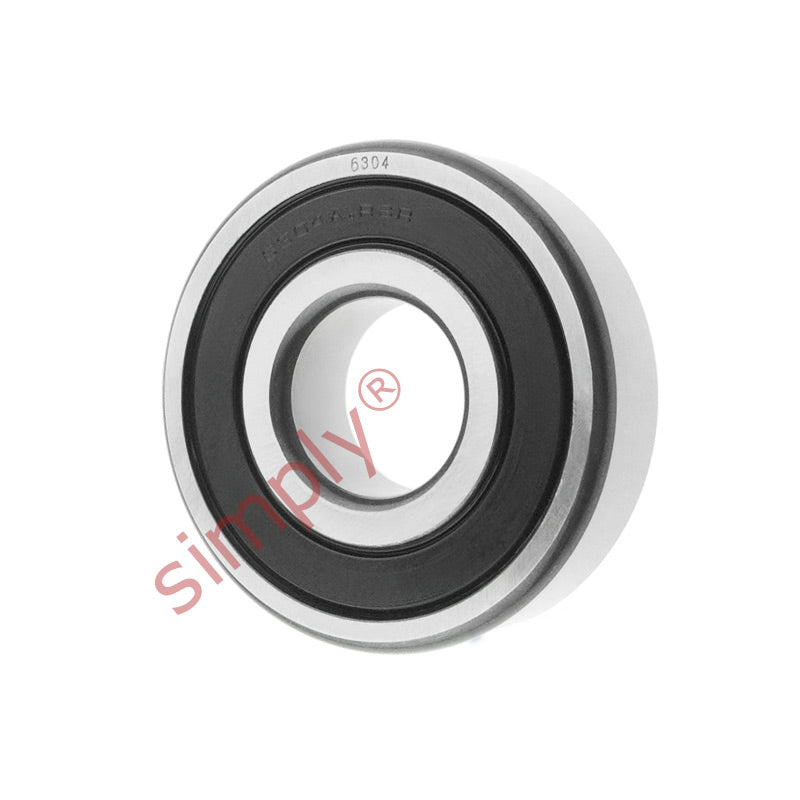

63042RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 20x52x15mm
Equivalent to: 6304NSEC3 6304DUC3 6304RSC3 6304RSHC3 6304PC3 6304RSRC3 6304LUC3 63042NSEC3 6304DDUC3 6304PPC3 63042RSRC3 6304LLUC3 63042RSC3 6304RS2C3 63042RS2C3 63042RS1C3
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1.1mm |
| Dynamic load Cr | 15.9 kN |
| Static load Cor | 7.85 kN |
| Speed in grease | 14000 rpm |
| Speed in oil | 17000 rpm |
