SKU: 6303LLU/5K-NTN

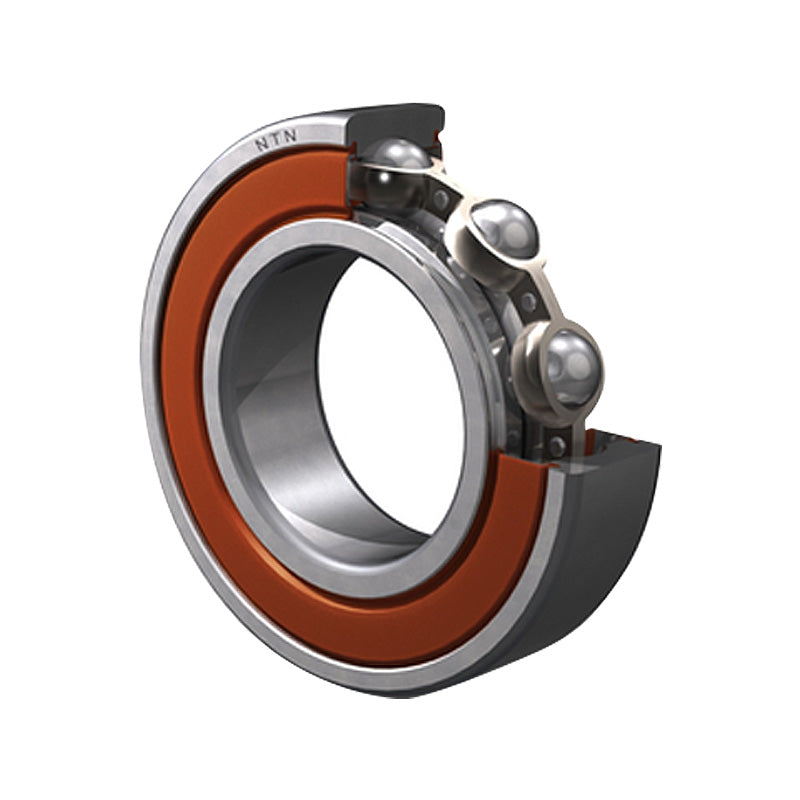

NTN 6303LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 17x47x14mm
Equivalent to: 6303LLUCM 6303NSE 6303DU 6303RS 6303RSH 6303P 6303RSR 6303LU 63032NSE 6303DDU 63032RS 6303-2RS 63032RS1 63032RSH 6303PP 63032RSR 6303LLU 6303RS2 63032RS2 63032RSL 6303LFS 6303EE 303P 303SZ Z9603 1303R
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 47mm |
| B | 14mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 15 kN |
| C<sub>or</sub> | 6.55 kN |
| C<sub>u</sub> | 0.51 kN |
| f<sub>0</sub> | 12.2 kN |
| Speed | 11000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 22mm |
| d<sub>a</sub> Max. | 25mm |
| D<sub>a</sub> Max. | 42mm |
| r<sub>as</sub> Max. | 1mm |
| Weight Kg | 0.115 kg |
